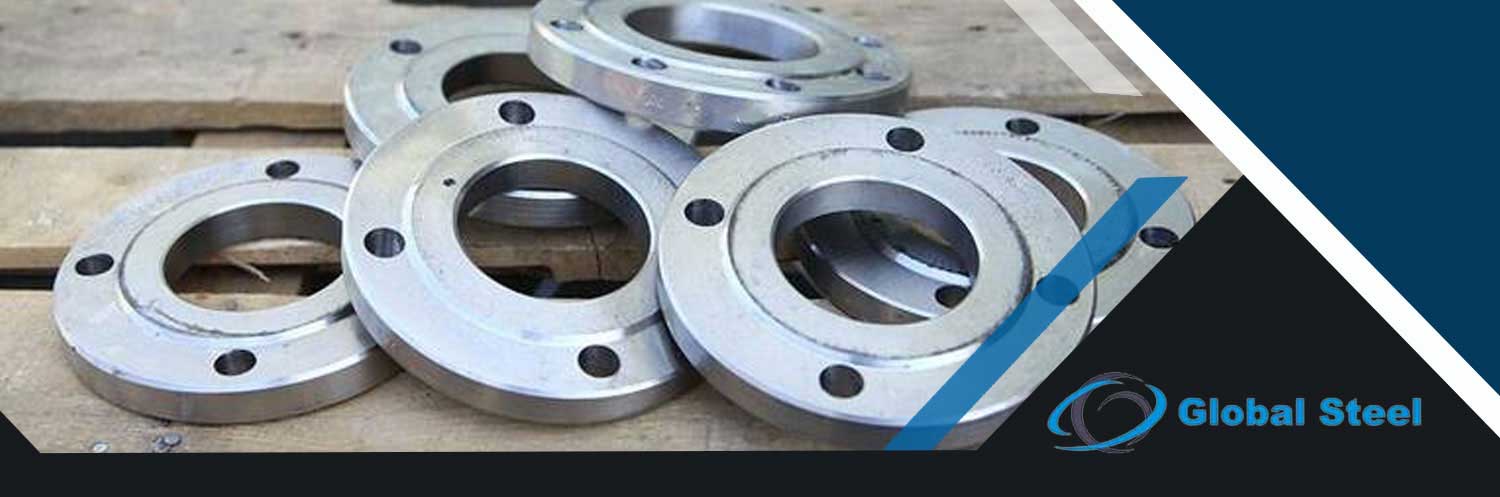

Global steel india is a supplier of stainless steel 347/347H flanges. Our products are manufactured keeping in mind the internationally recognized standards and are available at competitive prices.
Table Of content
Stainless steel 347 flanges can withstand a wide temperature range. Stainless Steel 347 Flanges are suitable for use in both high and cryogenic temperatures. They’re perfect for applications with a lot of wear and tear. The material is well-known for its exceptional resistance to oxidation and wear. Stainless Steel 347 Flanges are commonly used in large exhaust systems and boilers due to their ability to tolerate harsh conditions and superior mechanical qualities. They are also used for high-temperature and high-pressure service applications. They are used in industries such as offshore oil drilling companies, power generation plants, petrochemicals, gas processing, specialty chemicals, pharmaceuticals, pulp and paper industries, etc.
stainless steel 347H flanges are the higher carbon version of stainless steel 347 flanges. It is used for enhanced creep resistance and for higher strength at temperatures above 1000°F. Stainless steel 347H grade flanges can be welded using conventional welding methods. However, oxyacetylene welding is not preferred. hot work processes can be performed at 1149 to 1232°C (2100 to 2250°F). In order to obtain maximum hardness, 347H stainless steel needs to be water quenched and annealed. Stainless steel 347H flanges are used in Aircraft exhaust stacks and manifolds, Jet engine parts, Weld equipment, and Chemical processing equipment.
What is Stainless Steel 347H Flange?
Stainless steel 347H flange is a type of flange made from the stainless steel alloy 347H, a high carbon version of the popular 347 stainless steel. This type of flange is commonly utilized in high-temperature applications where high strength and corrosion resistance are required. It has excellent oxidation resistance and is commonly used in furnaces and other high-temperature equipment, also in chemical and petrochemical industries.
What are the applications of Stainless Steel 347H Flanges?
Stainless steel 347H flanges are commonly used in high-temperature applications that require high strength and excellent corrosion resistance, like chemical and petrochemical industries, oil and gas, food, pulp, and paper manufacturing. They are often used in furnaces, heat treatment equipment, and power generation facilities.
What is the process for manufacturing Stainless Steel 347H Flanges?
The manufacturing process for Stainless Steel 347H flanges typically involves forging or casting, followed by machining and finishing processes. Forged flanges are made by heating and shaping a billet of steel into the desired shape, while cast flanges are made by pouring molten steel into a mold. Machining processes, such as drilling and tapping, are then used to finish the flanges. Finally, the flanges may be subjected to heat treatment or other finishing processes, such as sandblasting or polishing.
Standards | ASTM A182 / ASME SA182 |
Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc |
Size | 1/2″ (15 NB) to 48″ (1200NB) |
Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
ASME/ANSI B16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
ASME/ANSI B16.47 | Blind Flange [Series A & B],Welding Neck Flange |
PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
ASME/ANSI B16.36 | Orifice Flange |
PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
PRESSURE CLASS | PN 2.5 TO PN 40 |
BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
PRESSURE CLASS | PN 2.5 TO PN 400 |
BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
TABLE | D, E, F, H |
DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
PRESSURE CLASS | PN 6 TO PN 100 |
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 347,347H Flanges as per DIN, ASTM, ASME, BS, EN, JIS or ANSI Standard.
15mm (1/2″) Stainless Steel 347 Flanges Weight Chart
Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9 |
3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13 |
5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7 | 15.4 |
6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13 | 28.6 |
10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18 | 39.5 |
12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29 | 64 |
14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39 | 86 |
16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47 | 103 |
18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57 | 126 |
20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76 | 167 |
24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97 | 214 |
AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
---|
ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Application Industry
ANSI / ASME 16.5, 16.48, 16.47 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
