Stainless Steel 310 / 310S / 310H Flanges Manufacturer

Global steel india is a prominent supplier of stainless steel 310/310S/310H flanges. We assure superior quality products at competitive prices.

Table Of content

Stainless Steel 310 flange has good ductility and weldability, as well as outstanding high-temperature qualities. The high chromium content increases its high-temperature properties and also gives stainless steel 310 flanges good aqueous corrosion resistance. Because of its high chromium content, stainless steel 310 flanges are highly resistant to sulfidation and can also be used in relatively moderate carburizing atmospheres. It is suitable to use stainless steel 310 flanges in applications that require use in hydrogen sulphide rich environments such as crude oil and natural gas production facilities, wastewater treatment and utility facilities, and sewers.

Stainless steel 310H flange has a carbon content restricted to exclude the lower end of the 310 range, so it is the grade of choice for high-temperature applications. Stainless steel 310H flanges possess good resistance to corrosion at temperatures of up to 1040°C (1904°F) in intermittent use and 1150°C (2102°F) in continuous use. A higher concentration of chromium makes it withstand high temperatures.

Stainless steel 310S flange is used when the application environment involves moist corrodents in a temperature range lower than that which is normally considered a high temperature. The lower carbon content of 310S reduces its high-temperature strength compared to 310H.

Due to the exceptional durability of stainless steel 310/310S/310H Flanges, they are usually used in furnace parts, oil burner parts, carburizing boxes, heat treatment baskets, and jigs, and heat exchangers.

stainless steel 310/310S/310H flange grades have several varieties, like stainless steel weld neck 310 flanges, stainless steel 310S screwed flanges, stainless steel 310H reducing flanges, stainless steel long weld neck 310 flanges, stainless steel ring joint 310S flanges, stainless steel spectacle 310H flanges, stainless steel socket weld 310 flanges, etc.

What is 310 stainless steel flanges used for?

310 stainless steel flanges are commonly used in high-temperature applications that require good oxidation resistance and high strength. They are often utilized in chemical and petrochemical industries, also in a furnace and heat treatment equipment and power generation facilities. These 310 stainless steel flanges are known for their high-temperature performance and resistance to corrosion which can be employed in other applications, like oil and gas processing, food processing, and pulp and paper manufacturing.

Which is better stainless steel 310 or 316 Flanges?

Stainless steel 310 flanges have better temperature performance, with a higher maximum operating temperature than 316. These 310 flanges are often used in high-temperature applications in the chemical and petrochemical industries. Stainless steel 316 flanges have better corrosion resistance and are commonly used in marine environments and in food and pharmaceutical processing. The choice between the two will depend on the application’s specific requirements.

What is the density of SS 310 Flanges?

The density of SS 310 flanges is approximately 7.9 grams per cubic centimeter (g/cm³) or 0.285 pounds per cubic inch (lb/in³). The density of stainless steel 310 is similar to other austenitic stainless steels, such as 304 and 316. The density of SS 310 flanges can be used in calculating the weight of the flange, which is necessary in engineering and manufacturing processes.

Specification of SS 310, 310S, 310H Flanges

Standards ASTM A182 / ASME SA182
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc
Size 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

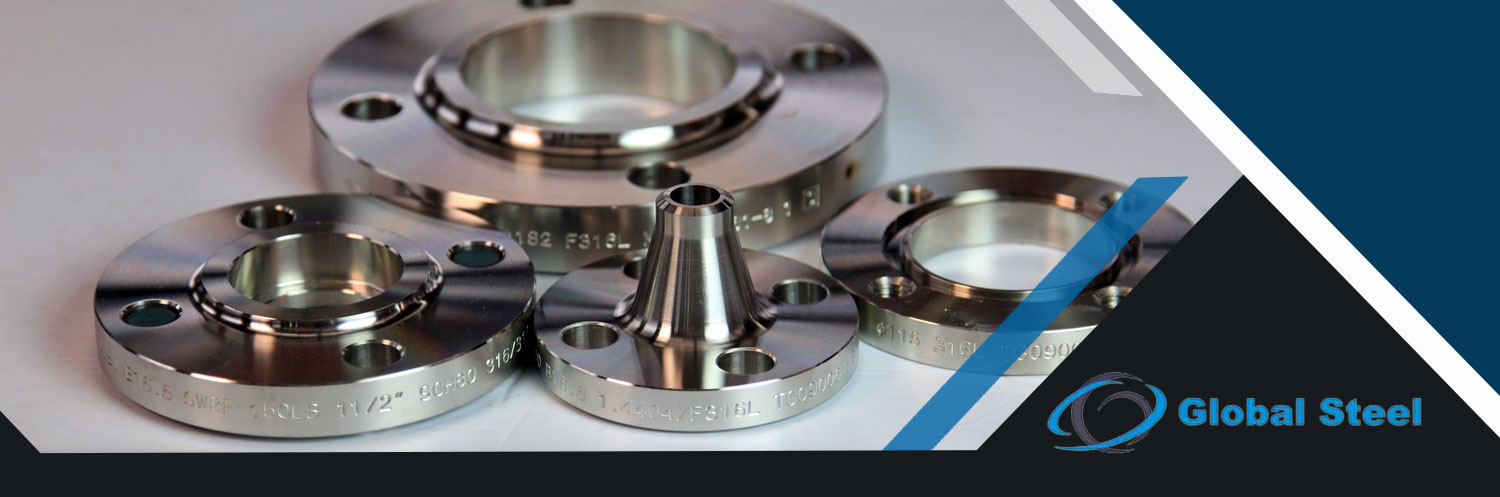

Stainless Steel 304 Flanges

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 – X15CrNi25-20
SS 310S 1.4845 S31008 SUS 310S 310S16 20Ch23N18 – X8CrNi25-21
SS 310H – S31009 – – – – –

Manufacturing Standards

ASME/ANSI B16.5 Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B16.47 Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B16.36 Orifice Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Different Types

Slip On Flanges

SS 310, 310S, 310H Slip On Flanges

Blind Flanges

SS 310, 310S, 310H Blind Flanges

Socket Weld Flanges

SS 310, 310S, 310H Socket Weld Flanges

Weld Neck Flange

SS 310, 310S, 310H Weld Neck Flanges

Reducing Flanges

SS 310, 310S, 310H Reducing Flanges

Orifice Flanges

SS 310, 310S, 310H Orifice Flanges

Contact us to get a quick quote for your requirement.

We offer These Stainless Steel 310 / 310S / 310H Flanges as per DIN, ASTM, ASME, BS, EN, JIS or ANSI Standard.

Request a Quote

Available Stock

  • ANSI B16.5 Stainless Steel 310 Expander Flanges
  • 310 Stainless Steel Nipoflange
  • 310 SS Pipe Flange
  • Grade 310 Stainless Steel Flanges
  • 310S SS Flanges
  • SS 310H Spectacle Blind Flanges
  • UNS S31000 Male & Female Flanges
  • Stainless Steel 310 Tongue Flanges
  • SS 310H RTJ Flanges
  • INOX 310 Flanges
  • SS 310H Groove Flanges
  • Stainless Steel 310H PN 10 Flange
  • Stainless Steel 310S Plate Flange
  • ASME B16.47 SS 310S Spades Ring Spacers Flanges
  • ASTM A182 F310H Stainless Steel Flanges
  • Type 310H SS Industrial Forged Flanges
  • UNS S31008 Stainless Steel Lap Joint Flanges
  • SS 310H Flanges
  • SS 310 Flat Face Flanges
  • Stainless Steel 310 Long Welding Neck Flange
  • Stainless Steel 310S Flanges
  • Stainless Steel 310H Loose Flanges
  • 310S SS Weldo Flanges
  • SS 310S Lapped Joint Flanges
  • Stainless Steel 310H BS Standard Table E
  • SS 310S DIN Flanges
  • Stainless Steel 310S Nipo Flanges
  • SS 1.4845 1500 LBS Flanges
  • Stainless Steel 310S Screwed Flanges
  • Austenitic Stainless Steel 310H Flanges
  • SS 310S British Standard Table D Pipe Flanges
  • 310S SS 150 LBS Threaded Flanges
  • Stainless Steel 310 Spades Ring Spacers Flanges

Weight Chart

15mm (1/2″) Stainless Steel 310 Flanges Weight Chart
Pipe Normal Diam.
O.D. Flange
Thk. Of Flange Min
Diam.
of
Hub
Diameter of Raised Face
Length Hub.Y
Thread Length
Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG
LB
inch
dn
O
C
X
G
Y
T
BC
BH
BN
BD


1/2″
15
89.00
11.20
30.20
35.10
15.70
15.70
60.50
15.80
4
1/2″
0.4
0.9
3/4″
20
98.50
12.70
38.10
42.90
15.70
15.70
69.90
15.80
4
1/2″
0.7
1.5
1″
25
108.00
14.20
49.30
50.80
17.50
17.50
79.30
15.80
4
1/2″
0.8
1.8
1-1/4″
32
117.50
15.70
58.70
63.50
20.60
20.60
88.90
15.80
4
1/2″
1.2
2.6
1-1/2″
40
127.00
17.50
65.00
73.20
22.40
22.40
98.60
15.80
4
1/2″
1.5
3.3
2″
50
152.50
19.10
77.70
91.90
25.40
25.40
120.70
19.10
4
5/8″
2.3
5.1
2-1/2″
65
178.00
22.40
90.40
104.60
28.40
28.40
139.70
19.10
4
5/8″
3.7
8.1
3″
80
190.50
23.90
108.00
127.00
30.20
30.20
152.40
19.10
4
5/8″
4.1
9
3-1/2″
90
216.00
23.90
122.20
139.70
31.80
31.80
177.80
19.10
8
5/8″
5.1
11.2
4″
100
228.50
23.90
134.90
157.20
33.30
33.30
190.50
19.10
8
5/8″
5.9
13
5″
125
254.00
23.90
163.60
185.70
36.60
36.60
215.90
22.40
8
3/4″
7
15.4
6″
150
279.50
25.40
192.00
215.90
39.60
39.60
241.30
22.40
8
3/4″
8.4
18.5
8″
200
343.00
28.40
246.10
269.70
44.50
44.50
298.50
22.40
8
3/4″
13
28.6
10″
250
406.50
30.20
304.80
323.90
49.30
49.30
362.00
25.40
12
7/8″
18
39.5
12″
300
482.50
31.80
365.30
381.00
55.60
55.60
431.80
25.40
12
7/8″
29
64
14″
350
533.50
35.10
400.10
412.80
57.20
57.20
476.30
28.50
12
1″
39
86
16″
400
597.00
36.60
457.20
469.90
63.50
63.50
539.80
28.50
16
1″
47
103
18″
450
635.00
39.60
505.00
533.40
68.30
68.30
577.90
31.80
16
1 1/8″
57
126
20″
500
698.50
42.90
558.80
584.20
73.20
73.20
635.00
31.80
20
1 1/8″
76
167
24″
600
813.00
47.80
663.40
692.20
82.60
82.60
749.30
35.10
20
1 1/4″
97
214

Dimensions

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
  • ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Pressure Rating

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Chemical Structure

Grade C Mn Si P S Cr Mo Ni N
SS 310 0.015 max 2.0 max 0.15 max 0.020 max 0.015 max 24.00 – 26.00 0.10 max 19.00 – 21.00 54.7 min
SS 310S 0.08 max 2.0 max 1.00 max 0.045 max 0.030 max 24.00 – 26.00 0.75 max 19.00 – 21.00 53.095 min
SS 310H 0.04 – 0.10 2.0 max 1.00 max 0.045 max 0.030 max 24.00 – 26.00 – 19.00 – 21.00 53.885 min

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1402 °C (2555 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40 %

We Serve Application Industry

Application Industry

ANSI / ASME 16.5, 16.48, 16.47 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Petrochemical Industry

Power Generation Industry

Chemical Industry

We Export Stainless Steel 310, 310S, 310H Flanges Across the Globe

Spain, Poland, Libya, Costa Rica, Hong Kong, Austria, United States, United Kingdom, Croatia, Angola, Denmark, Canada, Ireland, Pakistan, Chile, Mexico, Oman, Sweden, Iraq, Sri Lanka, Lahore, Greece, Philippines, Lebanon, India, Saudi Arabia, columbia, Kenya, Venezuela, Russia, Peru, Bolivia, Switzerland, Ecuador, Argentina, Singapore, Morocco, Portugal, Bangladesh, Gambia, Brazil, Algeria, New Zealand, Ghana, Thailand, Iran, United Arab Emirates, Bahrain, Serbia, Gabon, Lithuania, Afghanistan, Finland, Zimbabwe, Vietnam, Netherlands, Mongolia, Macau, Bulgaria, Nepal, South Korea, Indonesia, Turkey, Algiera, Trinidad & Tobago, Bhutan, Egypt, Kuwait, Belgium, Tibet, Puerto Rico, Belarus, Israel, Nigeria, Kazakhstan, Czech Republic, Italy, Norway, Japan, Germany, Qatar, Malaysia, Hungary, Slovakia, South Africa, Yemen, Tunisia, Taiwan, Namibia, China, Jordan, France, Azerbaijan, Australia, Romania, Ukraine, Estonia, Colombia.

Domestic Supply Stainless Steel 310, 310S, 310H Flanges

Haryana, mumbai, Ahmedabad, Bhopal, Thiruvananthapuram, Kolkata, New Delhi, Ernakulam , Kanpur, Faridabad, Visakhapatnam, Secunderabad, Ludhiana, Surat, Gurgaon, Jamshedpur, Chennai, Pimpri-Chinchwad, Chandigarh, Indore, Navi Mumbai, Nagpur, Rajkot, Bengaluru, Nashik, Pune, Ranchi, Hyderabad, Jaipur, Howrah, Noida, Thane.
