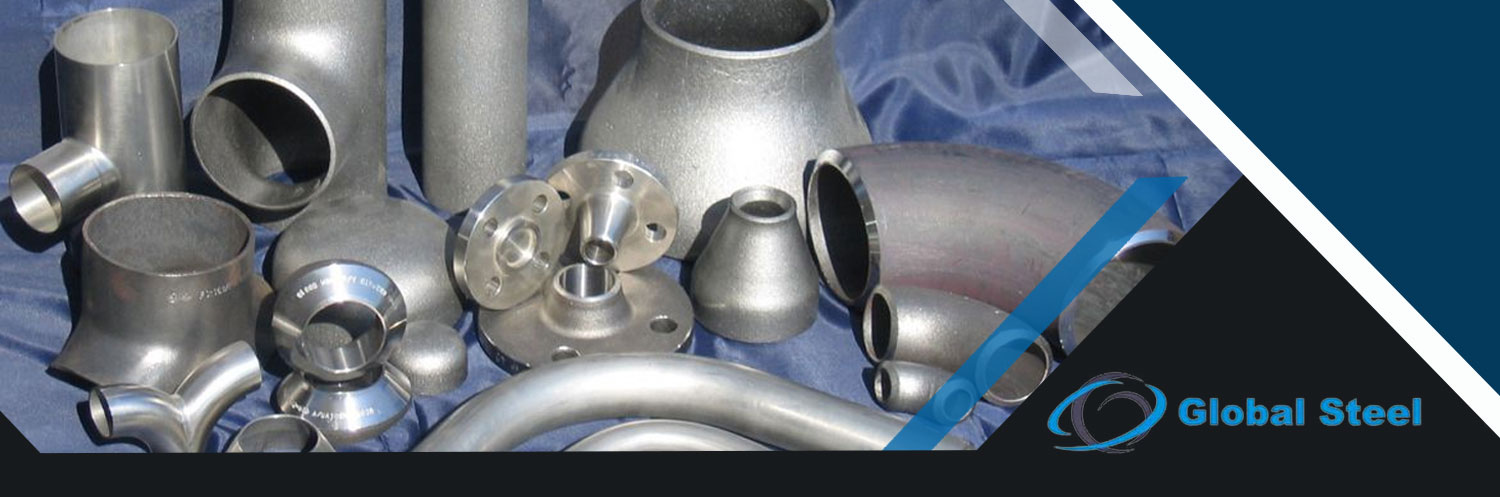

We are a reputable manufacturer, supplier, and exporter of high-quality Stainless Steel 304/304L/304H Pipe Fittings. Our high-quality fittings are readily welded by standard techniques, including gas tungsten arc welding, shielded welding, gas metal-arc welding, and others.
Stainless Steel Pipe Fittings consist of Tees and Elbows, Eccentric and Concentric Reducers, etc. Our stainless steel 304H pipe fittings have excellent corrosion resistance. We Global Steel exports premium quality stainless steel pipe fittings to its clients. The fittings are made from good quality raw material and using the latest technology so that our clients can use them for a long time without experiencing any problems.
Stainless Steel 304, 304L, 304H Pipes Fittings is a highly recommended and widely used stainless steel in the industry. It contains components like nickel and chromium metal. It is a kind of austenitic steel that has both electrical and thermal conductivity. Because of the simplicity with which the sizes and forms may be manufactured, the grade is noted for its superior corrosion resistance. Stainless steel 304 Pipe Fittings has both excellent characteristics and attributes that distinguish it as a high-quality product, hence they are used in several industrial applications.
Because it is commonly used in the pulp and paper industries, stainless steel 304 Pipe Fittings offer the best immune to corrosion and acidic chloride conditions. For seawater equipment, stainless steel 304L Pipe Fittings are also employed. Pipe fittings made of stainless steel 304H are used in chemical equipment and condensers. They maintain the finest quality by taking care of production, testing, and packaging, and the last delivery of the products by maintaining the highest quality.
|Standards||ASTM A403 / ASME SA403|
|Dimensions||ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10|
|Type||Seamless / Welded / Fabricated|
|Thickness||SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75|
|Bending Radius||R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom|
|SS 304||1.4301||S30400||SUS 304||304S31||08Х18Н10||Z7CN18‐09||X5CrNi18-10|
|SS 304L||1.4306 / 1.4307||S30403||SUS 304L||3304S11||03Х18Н11||Z3CN18‐10||X2CrNi18-9 / X2CrNi19-11|
|SS 304H||1.4948||S30409||SUS 304H||–||–||–||–|
|ASME B16.9 ASTM A403 WP304 Fittings||Factory-Made Wrought Buttwelding Fittings||Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet|
Crosses, Lap Joint Stub Ends, Caps, Reducers
|ASME B16.28||Short Radius Elbows, Short Radius 180-deg Returns|
|MSS SP43||Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications||Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers|
|Mss SP75||Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers|
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 304 / 304L / 304L Buttweld Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.
|1/2 TO 2-1/2||+1/16||±1/32||Not less than 87-1/2% of Normal Thickness||±1/16||±1/16||±1/8||±1/4||±1/4||±1/32||12 to 4||1/32||1/16|
|-1/32||5 to 8||1/16||1/8|
|3 TO 3-1/2||±1/16||±1/16||±1/16||±1/16||±1/8||±1/4||±1/4||±1/32||10 to 12||3/32||3/16|
|4||±1/16||±1/16||±1/16||±1/16||±1/8||±1/4||±1/4||±1/32||14 to 16||3/32||1/4|
|5 TO 8||+1/32||±1/16||±1/16||±1/16||±1/4||±1/4||±1/4||±1/32||18 to 24||1/8||3/8|
|10 TO 18||+1/16||±1/8||±3/32||±3/32||±1/4||±3/8||±1/4||±1/16||All dimensions are in inches|
|20 TO 24||+1/4||±3/32||±3/32||±3/32||±1/4||±3/8||±1/4||±1/16|
|SS 304||0.08 max||2 max||0.75 max||0.045 max||0.030 max||18 – 20||–||8 – 11||–|
|SS 304L||0.035 max||2 max||1.0 max||0.045 max||0.030 max||18 – 20||–||8 – 13||–|
|SS 304H||0.10 max||2 max||0.75 max||0.045 max||0.03 max||18 – 20||–||8 – 10.5||–|
|Grade||Density||Melting Point||Tensile Strength||Yield Strength (0.2%Offset)||Elongation|
|SS 304||8.0 g/cm3||1400 °C (2550 °F)||Psi – 75000 , MPa – 515||Psi – 30000 , MPa – 205||35 %|
|SS 304L||8.0 g/cm3||1400 °C (2550 °F)||Psi – 75000 , MPa – 515||Psi – 30000 , MPa – 205||35 %|
|SS 304H||8.0 g/cm3||1400 °C (2550 °F)||Psi – 75000 , MPa – 515||Psi – 30000 , MPa – 205||40 %|
Contact us at the Industrial nearest to you or submit a business inquiry online.
Global Steel is a significant manufacturer and exporter of all ferrous and non-ferrous metals. As a pioneer and leader in the industry, Global Steel is at the forefront of technology and research.
