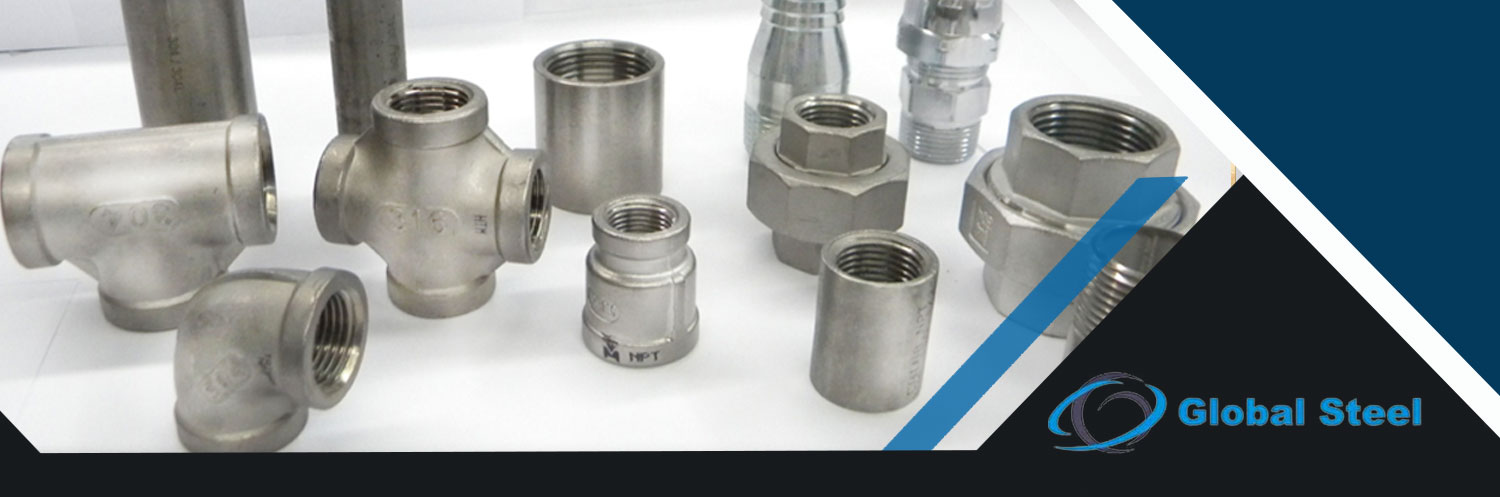

Global Steel is a well-known Supplier, Manufacturer, and Stockist of Stainless Steel 904L Forged Fitting. These Fittings are fabricated using top-notch quality raw materials and are manufactured using contemporary types of machinery and types of equipment. We are a unique and creative firm that is well-known across the world for working with huge numbers of clients and providing extensive varieties of forged fittings.
Table Of content
The austenitic stainless steel is 904L. The inclusion of molybdenum gives greater resistance to localized assaults such as crevice corrosion and pitting. It is also very resistant to reducing acids and, with the addition of copper, is resistant to all concentrations of sulphuric acid. The high alloying element also contributes to its strong resilience to the chloride SSC to which it is vulnerable. Because of its low carbon content, it is resistant to sensitization during welding, which reduces intergranular corrosion.
The design and fabrication are carried out in accordance with well-defined production norms and raw material quality requirements. Plastic sheets are used for packing, which are subsequently placed in hardwood cases and carton boxes. This ensures that the goods are delivered to the consumer in a safe and damage-free manner. These Stainless Steel 904L Forged Fittings are utilized in several industries including the Fertilizers, chemicals as well as petrochemical, cement, oil, gas, etc.
We, Global Steel try to cater to the demands of our worldwide clientele by providing the same in a variety of standard and customized specifications. As a result, it is made accessible to purchasers in a variety of standards, sizes, classifications, varieties, and so on. We also provide this grade forged fittings in customized specifications based on the needs of our customers.
| Standards | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |

| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel Forged fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |






Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 904L Socketweld Forged Fittings as per DIN, ISO, JIS or ANSI Standard.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Application Industry
Socket weld Forged Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
