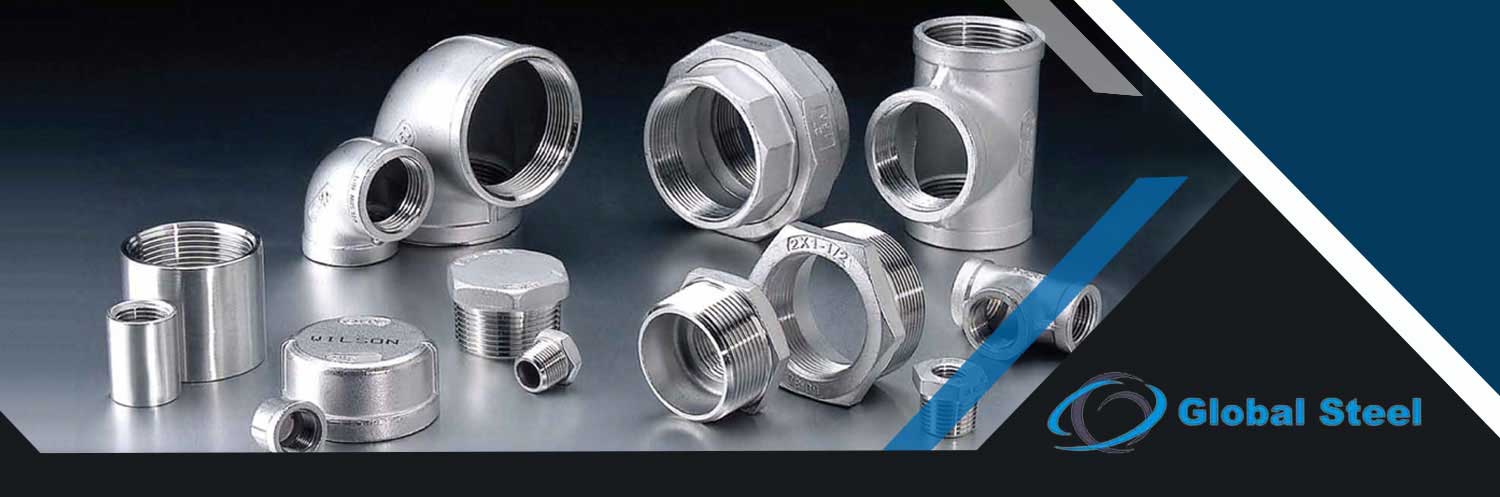

Global Steel is a reputable Manufacturer, Supplier, and Stockist of Stainless Steel 304/304L/304H Forged Fittings. These Fittings are manufactured using supreme quality raw materials.
Table Of content
Stainless Steel Grade 304 Forged Fittings are the industry standard 18/8 (18% chromium, 8% nickel) austenitic stainless steel. It is a nonmagnetic alloy when annealed, but it turns magnetic when cold works. It is the most often used of all stainless grades. Because of its high ductility, T304 can be easily welded and is recommended for many deep drawn, spun, or shaped components.
Stainless Steel Grade 304L Forged Fittings has a continuous oxidation resistance to a maximum temperature of 1650 Degree F without significant scaling. For intermittent presentation, the maximum temperature is 1500 ° F. Because 304L is a low-carbon variant of 304, Except for applications suggesting stress alleviation, it may typically be used “as-welded” (without annealing) even in harsh corrosive environments.
Stainless Steel 304L Forged Fittings have strong welding properties and may be welded using any conventional strategy. Annealing can be used to reduce tension after intense shaping or spinning welding.
Stainless Steel Grade 304H Forged Fittings have a high carbon content, making them more appropriate for use in applications requiring high temperatures. This grade has the advantage of being an austenitic chromium-nickel steel alloy, as well as having a higher carbon content, which results in higher tensile and yield strength.
Once the manufacturing is done we send these Forged Fittings for certain testing, so that they don’t bear any damages. We pack these fittings in proper packaging to ensure damage-free delivery of our products.
Standards | ASTM A182 / ASME SA182 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | Socketweld Fittings, Screwed-Threaded Fittings |
Forged Fittings Thread | NPT, BSPT, BSPP |
Forged Fittings Test Certificates |
|
Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
SS 304H | 1.4948 | S30409 | SUS 304H | – | – | – | – |
ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
BS21 | Threading. |
BS3799 | Specification for Steel Forged fittings, screwed and Socket-welding for the petroleum industry |
ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 304 / 304L / 304L Socketweld Forged Fittings as per DIN, ISO, JIS or ANSI Standard.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
SS 304H | 0.10 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Application Industry
Socket weld Forged Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
