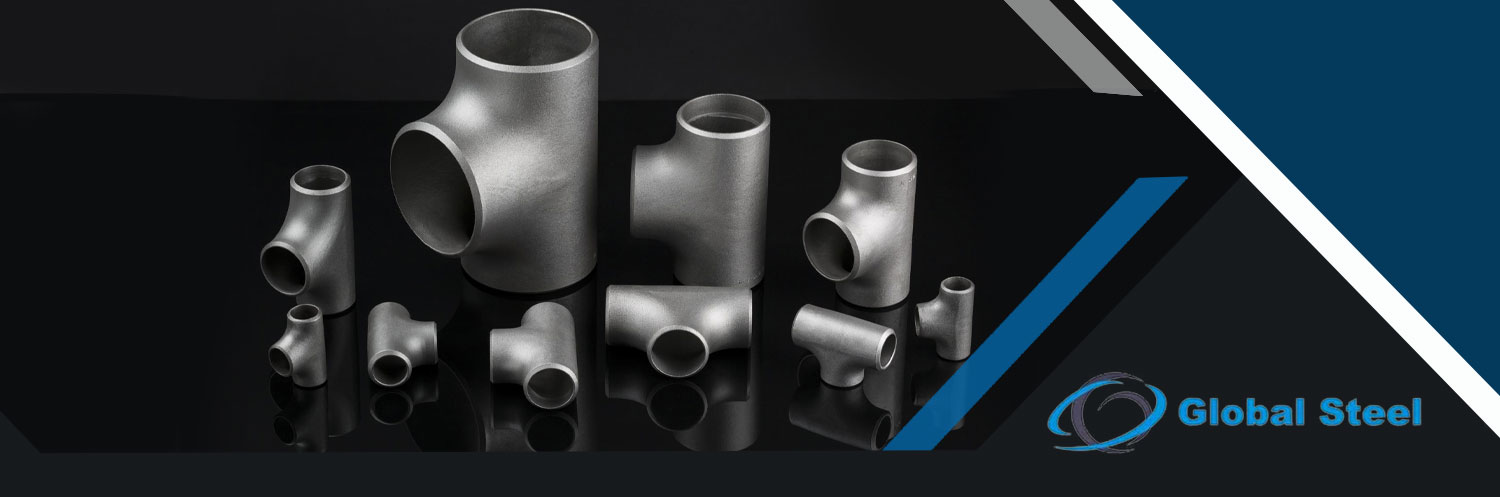

Global Steel is a notable supplier and manufacturer of Incoloy 825 Pipe Fittings. These Pipes are made using supreme quality raw materials. Incoloy 825 is a nickel-iron-chromium alloy containing tiny amounts of titanium, copper, and molybdenum. With its chemical composition, Incoloy 825 has immense resistance to corrosion, such as pitting, crevice corrosion, intergranular corrosion, and stress corrosion cracking. The alloy has good mechanical properties at temperatures ranging from moderate to high, with a range of 1600 to 2150 Degree F.
Table of Content
The Incoloy 825 Pipe Fittings alloy is designed to offer exceptional corrosion resistance. It is similar to alloy 800 but has better resistance to aqueous corrosion. It also demonstrates remarkable resistance to both reducing acids and oxidizing acids, to stress corrosion cracking, and to localized attacks, such as pitting and crevice corrosion, including:
Mechanical qualities that are good in both rooms and increased temperatures up to around 1000 Degree F. Permission to use pressure vessels with wall temperatures of up to 800 Degree F. Resistance to stress-corrosion cracking is high. Resistant to localized attacks such as pitting and crevice corrosion. These Incoloy 825 Pipe Fittings have Sulfuric and phosphoric acid having is excellent resistance. These are some of the characteristics of these Inconel Fittings.
These Inconel 825 Pipe Fittings offer fundamental properties like weldability and robust construction, low maintenance, and long service life. Our quality control team tests all the products thoroughly before dispatching them to the clients.
We maintain ready stock of Pipe Fittings to meet the urgent requirements of our customers. These Fittings go through quality tests like Mill test certificate, 100% Radiography Test Report, Third party Inspection Record Report, Buyers Report, Raw material certificate
Standards | ASTM AB366 / ASME SB366 |
Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
Size |
|
Type | Seamless / Welded / Fabricated |
Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
STANDARD | WERKSTOFF NR. | UNS | AFNOR | GOST | JIS | BS | EN | OR |
Incoloy 825 | 2.4858 | N08825 | NC 21 FeDU | XH38BT | NCF 825 | NA 16 | NiCr21Mo | ЭП703 |
ASME B16.9 ASTM B366 825 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Contact us to get a quick quote for your requirement.
We offer These Incoloy 825 Buttweld Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.
1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
-1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
-1/16 | ||||||||||||
10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
-1/8 | ||||||||||||
20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
-3/32 |
Grade | Cr | Fe | Ni | C | Mn | Cu | Si | S |
Incoloy 825 | 19.5 – 23.5 | 1.0 max | 38.0 – 46.0 | 0.05 max | 1.0 max | 1.5 – 3.0 | 0.5 max | 0.03 max |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Application Industry
