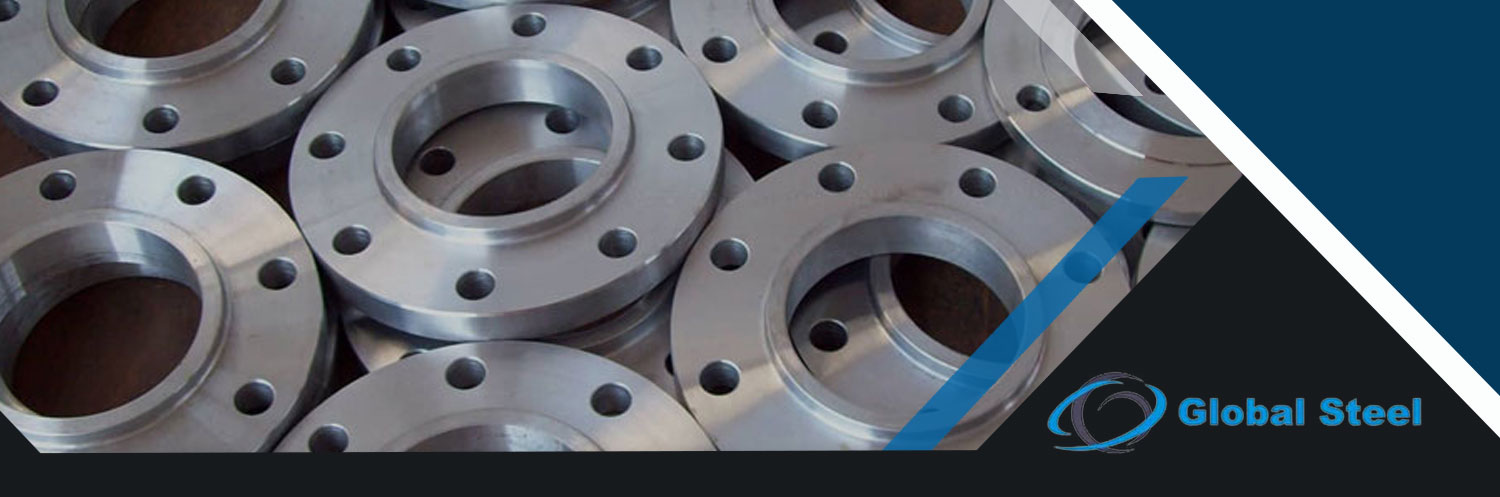

Monel K500 Flanges Manufacturer

Global Steel is a manufacturer and supplier of Monel K500 Flanges. We offer supreme quality products at competitive prices. All our products undergo our strict quality check process to ensure no discrepancies.

Monel K500 Flanges are comprised of a Nickel-copper alloy, a perfect combination Monel 400’s better corrosion resistance and Monel K500’s increased strength and hardness. These improved properties are accomplished through a thermal precipitation process called age hardening or ageing, which combines aluminum and titanium with a Nickel-copper base. The yield strength of Monel K-500 Flanges is approximately three times than that of Monel 400 Flanges and the tensile strength is almost double. Cold works before precipitation hardening can also help to enhance it. Monel k-500 flange maintains its strength at temperatures up to 650 degrees Celsius while remaining ductile and strong at temperatures as low as 200 degrees Celsius. It melts at temperatures between 2400 and 2460 degrees Fahrenheit.

Monel K-500 Flanges offer approximately equal corrosion resistance to Monel 400 Flanges, with the exception that when age-hardened, Monel K-500 Flanges have a higher chance of stress-corrosion cracking in certain environments. Monel K-500 Flanges are sour gas resistant. Due to its ability to withstand corrosion in high-velocity seawater and also high strength, Monel K-500 Flanges are particularly well suited for shafts of centrifugal pumps in maritime service. Fouling can occur in stagnant or slow-moving sea water, followed by pitting, although, after an initial attack, the pitting slows down.

Monel 400 Flanges can be customized in a wide variety of finishes and dimensions depending upon the needs of the client.

Specification of Monel K500 Flanges

Standards ASTM B564 / ASME SB564
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc
Size 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Monel K500 Flanges

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel K500 2.4375 N05500

Manufacturing Standards

ASME/ANSI B16.5 Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B16.47 Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B16.36 Orifice Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Different Types

Slip On Flanges

Monel K500 Slip On Flanges

Blind Flanges

Monel K500 Blind Flanges

Socket Weld Flanges

Monel K500 Socket Weld Flanges

Weld Neck Flange

Monel K500 Weld Neck Flanges

Reducing Flanges

Monel K500 Reducing Flanges

Orifice Flanges

Monel K500 Orifice Flanges

Contact us to get a quick quote for your requirement.

We offer These Monel K500 Flanges as per DIN, ASTM, ASME, BS, EN, JIS or ANSI Standard.

Available Stock

  • Monel K500 Flanges
  • K500 Monel® Alloy Flanges
  • Monel Alloy K500 Flanges
  • Monel K500 PN 10 Flange
  • ANSI B16.5 Monel K500 Expander Flanges
  • Monel Alloy K500 Plate Flange
  • ASME B16.47 Monel K500 Spades Ring Spacers Flanges
  • UNS N05500 Male & Female Flanges
  • K500 Monel Nipoflange
  • Type K500 Monel Industrial Forged Flanges
  • K500 Monel Pipe Flange
  • Monel K500 NPT / BSP Thread Flanges
  • Alloy K500 Flanges
  • ASTM B564 K500 Monel Flanges
  • Monel Gr K500 Flanges
  • Monel K500 Tongue Flanges
  • Monel UNS N05500 Lap Joint Flanges
  • Alloy K500 Spectacle Blind Flanges
  • K500 Monel Screwed Flanges
  • Monel 2.4375 RTJ Flanges
  • Monel® Alloy K500 Groove Flanges
  • Grade K500 Monel Flanges
  • Nickel Alloy K500 RTJ Flanges
  • K500 Monel EN Flanges
  • Monel K500 BS Standard Table E
  • Monel K500 300 LBS Flanges
  • Monel 2.4375 1500 LBS Flanges
  • K500 Monel Weldo Flanges
  • Monel 2.4375 Flanges
  • Nickel Alloy K500 Loose Flanges
  • Monel K500 DIN Flanges
  • Monel K500 High Hub Blind Flanges
  • K500 Monel 150 LBS Threaded Flanges
  • K500 Monel Flanges
  • Monel Alloy K500 Flat Face Flanges
  • Monel K500 ASME Flanges
  • Alloy K500 Spades Ring Spacers Flanges
  • Monel K500 Nipo Flanges
  • Monel® Alloy K500 Flanges
  • K500 Monel Alloy Flanges
  • Monel K500 British Standard Table D Pipe Flanges
  • ANSI / ASME B16.5 Monel K500 Forged Flanges
  • Alloy K500 Lapped Joint Flanges
  • Monel K500 Screwed Flanges
  • Monel Grade K500 ANSI Flanges
  • Monel K500 Long Welding Neck Flange

Weight Chart

15mm (1/2″) Monel K500 Flanges Weight Chart
Pipe Normal Diam.
O.D. Flange
Thk. Of Flange Min
Diam. of Hub
Diameter of Raised Face
Length Hub.Y
Thread Length
Diam. of Bolt Circle
Diam. of Bolt Holes
Number of Bolts
Diam. of Bolts (inch)
KG
LB
inch
dn
O
C
X
G
Y
T
BC
BH
BN
BD
1/2″
15
89.00
11.20
30.20
35.10
15.70
15.70
60.50
15.80
4
1/2″
0.4
0.9
3/4″
20
98.50
12.70
38.10
42.90
15.70
15.70
69.90
15.80
4
1/2″
0.7
1.5
1″
25
108.00
14.20
49.30
50.80
17.50
17.50
79.30
15.80
4
1/2″
0.8
1.8
1-1/4″
32
117.50
15.70
58.70
63.50
20.60
20.60
88.90
15.80
4
1/2″
1.2
2.6
1-1/2″
40
127.00
17.50
65.00
73.20
22.40
22.40
98.60
15.80
4
1/2″
1.5
3.3
2″
50
152.50
19.10
77.70
91.90
25.40
25.40
120.70
19.10
4
5/8″
2.3
5.1
2-1/2″
65
178.00
22.40
90.40
104.60
28.40
28.40
139.70
19.10
4
5/8″
3.7
8.1
3″
80
190.50
23.90
108.00
127.00
30.20
30.20
152.40
19.10
4
5/8″
4.1
9
3-1/2″
90
216.00
23.90
122.20
139.70
31.80
31.80
177.80
19.10
8
5/8″
5.1
11.2
4″
100
228.50
23.90
134.90
157.20
33.30
33.30
190.50
19.10
8
5/8″
5.9
13
5″
125
254.00
23.90
163.60
185.70
36.60
36.60
215.90
22.40
8
3/4″
7
15.4
6″
150
279.50
25.40
192.00
215.90
39.60
39.60
241.30
22.40
8
3/4″
8.4
18.5
8″
200
343.00
28.40
246.10
269.70
44.50
44.50
298.50
22.40
8
3/4″
13
28.6
10″
250
406.50
30.20
304.80
323.90
49.30
49.30
362.00
25.40
12
7/8″
18
39.5
12″
300
482.50
31.80
365.30
381.00
55.60
55.60
431.80
25.40
12
7/8″
29
64
14″
350
533.50
35.10
400.10
412.80
57.20
57.20
476.30
28.50
12
1″
39
86
16″
400
597.00
36.60
457.20
469.90
63.50
63.50
539.80
28.50
16
1″
47
103
18″
450
635.00
39.60
505.00
533.40
68.30
68.30
577.90
31.80
16
1 1/8″
57
126
20″
500
698.50
42.90
558.80
584.20
73.20
73.20
635.00
31.80
20
1 1/8″
76
167
24″
600
813.00
47.80
663.40
692.20
82.60
82.60
749.30
35.10
20
1 1/4″
97
214

Dimensions

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
  • ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Pressure Rating

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Chemical Structure

Grade C Mn Si S Cu Fe Ni
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

We Serve Application Industry

Application Industry

ANSI / ASME 16.5, 16.48, 16.47 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Petrochemical Industry

Power Generation Industry

Chemical Industry

Domestic Supply Monel K500 Flanges

Hong Kong, Switzerland, Iran, Sri Lanka, Bahrain, Mongolia, Ireland, Yemen, Vietnam, South Korea, Gambia, Saudi Arabia, Egypt, Lebanon, China, Croatia, Philippines, Bulgaria, Malaysia, Portugal, Finland, Canada, Azerbaijan, Indonesia, Trinidad & Tobago, Poland, Sweden, Romania, Tunisia, Germany, United Kingdom, Gabon, Australia, Japan, Italy, Ecuador, Colombia, Nepal, Brazil, Singapore, Austria, Bangladesh, Estonia, Jordan, United States, Denmark, Slovakia, Ghana, Zimbabwe, Namibia, Costa Rica, Lithuania, Angola, Thailand, United Arab Emirates, Peru, Bolivia, South Africa, Czech Republic, Serbia, Venezuela, Spain, Afghanistan, Oman, Kazakhstan, Mexico, Ukraine, columbia, Netherlands, Algiera, New Zealand, Qatar, Norway, Taiwan, Russia, Israel, Argentina, Morocco, Pakistan, Iraq, Libya, Lahore, India, Kuwait, Bhutan, France, Turkey, Puerto Rico, Kenya, Hungary, Belarus, Nigeria, Algeria, Greece, Macau, Tibet, Belgium, Chile.

Domestic Supply Inconel 600 Flanges

Bhopal, Mumbai, Chennai, Visakhapatnam, Chandigarh, Ludhiana, Noida, Pimpri-Chinchwad, Gurgaon, Secunderabad, Bengaluru, Jamshedpur, Howrah, Indore, Nashik, Faridabad, Thane, Pune, Thiruvananthapuram, Ernakulam, Kolkata, Surat, Ranchi, Kanpur, Rajkot, Hyderabad, Jaipur, Ahmedabad, New Delhi, Nagpur, Navi Mumbai, Haryana.
Global Steelindia

Global Steel is a significant manufacturer and exporter of all ferrous and non-ferrous metals. As a pioneer and leader in the industry, Global Steel is at the forefront of technology and research.

Quick Contact

Shop No.6, Sonarika Bldg, 25/C, Chandawadi, Cawasji Patel Tank, Mumbai, Maharashtra 400004
