Inconel 625 Flanges Manufacturer

We are one of India’s most reputable stockholders of Inconel flanges. Global Steel offers a wide range of Inconel 625 flanges, all manufactured in compliance with National and International quality standards. We supply our products at a competitive rate due to our vast experience and expertise in the industry. Our products are made of the finest raw materials and are designed to be a pleasure to use by our customers.

Table Of content

Global Steel is a well-known provider of Inconel flanges and related products. Because of our considerable expertise and experience in this business, we are able to provide authentic quality items at cheap prices to our consumers.

Inconel 625 flanges are a combination of 58% nickel and 20% chromium along with the addition of elements like carbon, manganese, sulfur, silicon, copper, and iron. A high percentage of nickel and chromium present in these flanges makes them greatly resistant to corrosion. These flanges have a tensile strength of 930Mpa and minimum yield strength of 517Mpa. This strong material has a melting point of 1degreesgree Celsius respectively. These flanges can be applied in tough and stressful applications.

These Inconel flanges can provide great resistance to general corrosion, pitting, and crevice corrosion in severe corrosive atmospheres. Inconel 625 flanges offer excellent fabricability, welding ability, and tensile strength. These flanges don’t require to be treated for precipitation hardening. They are resistant to oxidizing and reducing media, resistant to high temperature, and resistant to chloride ion stress cracking.

Inconel 625 flanges are widely used in the chemical processing industry, marine applications, aerospace industry, turbines, engines, and many more. These flanges are quite an advantage for high-temperature applications.

Specification of Inconel 625 Flanges

Standards ASTM B564 / ASME SB564
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc
Size 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

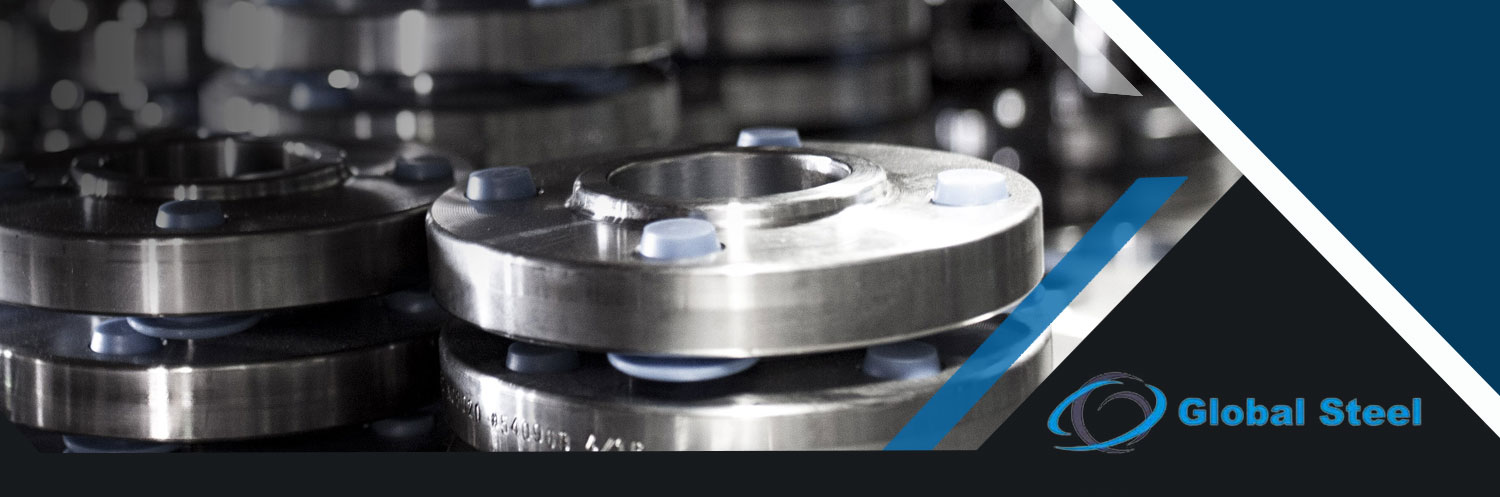

Inconel 625 Flanges

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb

Manufacturing Standards

ASME/ANSI B16.5 Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B16.47 Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B16.36 Orifice Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Different Types

Slip On Flanges

Inconel 625 Slip On Flanges

Blind Flanges

Inconel 625 Blind Flanges

Socket Weld Flanges

Inconel 625 Weld Neck Flanges

Weld Neck Flange

Inconel 625 Weld Neck Flanges

Reducing Flanges

Inconel 625 Reducing Flanges

Orifice Flanges

Inconel 625 Orifice Flanges

Contact us to get a quick quote for your requirement.

We offer These Inconel 625 Flanges as per DIN, ASTM, ASME, BS, EN, JIS or ANSI Standard.

Request a Quote

Available Stock

  • 625 Inconel Nipoflange
  • ASME B16.47 Inconel 625 Spades Ring Spacers Flanges
  • Inconel® Alloy 625 Groove Flanges
  • Inconel Alloy 625 Flanges
  • ASTM B564 625 Inconel Flanges
  • UNS N06625 Male & Female Flanges
  • N06625 Flanges
  • 625 Inconel Pipe Flange
  • Inconel Alloy 625 Plate Flange
  • Inconel UNS N06625 Lap Joint Flanges
  • Alloy 625 Spectacle Blind Flanges
  • Inconel 625 PN 10 Flange
  • 625 Inconel® Alloy Flanges
  • Inconel 625 NPT / BSP Thread Flanges
  • 625 Inconel Flanges
  • ANSI B16.5 Inconel 625 Expander Flanges
  • Inconel 625 Tongue Flanges
  • Grade 625 Inconel Flanges
  • Type 625 Inconel Industrial Forged Flanges
  • Inconel 625 Flanges
  • Nickel Alloy 625 RTJ Flanges
  • 625 Inconel Screwed Flanges
  • Inconel 2.4856 RTJ Flanges
  • 625 Inconel Alloy Flanges
  • Alloy 625 Spades Ring Spacers Flanges
  • Inconel 2.4856 Flanges
  • Inconel Alloy 625 Flat Face Flanges
  • ANSI / ASME B16.5 Inconel 625 Forged Flanges
  • Inconel 625 Nipo Flanges
  • Inconel 625 BS Standard Table E
  • Inconel 625 High Hub Blind Flanges
  • Inconel 625 DIN Flanges
  • Inconel® Alloy 625 Flanges
  • Inconel 2.4856 1500 LBS Flanges
  • Inconel 625 British Standard Table D Pipe Flanges
  • Inconel Grade 625 ANSI Flanges
  • 625 Inconel EN Flanges
  • 625 Inconel Weldo Flanges
  • Inconel 625 ASME Flanges
  • Alloy 625 Lapped Joint Flanges
  • 625 Inconel 150 LBS Threaded Flanges
  • Alloy 625 Flanges
  • Inconel 625 Long Welding Neck Flange
  • Inconel Gr 625 Flanges
  • Inconel 625 300 LBS Flanges
  • Nickel Alloy 625 Loose Flanges

Weight Chart

15mm (1/2″) Inconel 625 Flanges Weight Chart
Pipe Normal Diam.
O.D. Flange
Thk. Of Flange Min
Diam. of Hub
Diameter of Raised Face
Length Hub.Y
Thread Length
Diam. of Bolt Circle
Diam. of Bolt Holes
Number of Bolts
Diam. of Bolts (inch)
KG
LB
inch
dn
O
C
X
G
Y
T
BC
BH
BN
BD
1/2″
15
89.00
11.20
30.20
35.10
15.70
15.70
60.50
15.80
4
1/2″
0.4
0.9
3/4″
20
98.50
12.70
38.10
42.90
15.70
15.70
69.90
15.80
4
1/2″
0.7
1.5
1″
25
108.00
14.20
49.30
50.80
17.50
17.50
79.30
15.80
4
1/2″
0.8
1.8
1-1/4″
32
117.50
15.70
58.70
63.50
20.60
20.60
88.90
15.80
4
1/2″
1.2
2.6
1-1/2″
40
127.00
17.50
65.00
73.20
22.40
22.40
98.60
15.80
4
1/2″
1.5
3.3
2″
50
152.50
19.10
77.70
91.90
25.40
25.40
120.70
19.10
4
5/8″
2.3
5.1
2-1/2″
65
178.00
22.40
90.40
104.60
28.40
28.40
139.70
19.10
4
5/8″
3.7
8.1
3″
80
190.50
23.90
108.00
127.00
30.20
30.20
152.40
19.10
4
5/8″
4.1
9
3-1/2″
90
216.00
23.90
122.20
139.70
31.80
31.80
177.80
19.10
8
5/8″
5.1
11.2
4″
100
228.50
23.90
134.90
157.20
33.30
33.30
190.50
19.10
8
5/8″
5.9
13
5″
125
254.00
23.90
163.60
185.70
36.60
36.60
215.90
22.40
8
3/4″
7
15.4
6″
150
279.50
25.40
192.00
215.90
39.60
39.60
241.30
22.40
8
3/4″
8.4
18.5
8″
200
343.00
28.40
246.10
269.70
44.50
44.50
298.50
22.40
8
3/4″
13
28.6
10″
250
406.50
30.20
304.80
323.90
49.30
49.30
362.00
25.40
12
7/8″
18
39.5
12″
300
482.50
31.80
365.30
381.00
55.60
55.60
431.80
25.40
12
7/8″
29
64
14″
350
533.50
35.10
400.10
412.80
57.20
57.20
476.30
28.50
12
1″
39
86
16″
400
597.00
36.60
457.20
469.90
63.50
63.50
539.80
28.50
16
1″
47
103
18″
450
635.00
39.60
505.00
533.40
68.30
68.30
577.90
31.80
16
1 1/8″
57
126
20″
500
698.50
42.90
558.80
584.20
73.20
73.20
635.00
31.80
20
1 1/8″
76
167
24″
600
813.00
47.80
663.40
692.20
82.60
82.60
749.30
35.10
20
1 1/4″
97
214

Dimensions

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
  • ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Pressure Rating

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Chemical Structure

Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max – 5.0 max 58.0 min 20.0 – 23.0

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

We Serve Application Industry

Application Industry

ANSI / ASME 16.5, 16.48, 16.47 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Petrochemical Industry

Power Generation Industry

Chemical Industry

We Export Inconel 625 Flanges Across the Globe

Hungary, Argentina, Ghana, Kenya, Denmark, United States, Indonesia, United Arab Emirates, Thailand, Colombia, Saudi Arabia, China, Spain, Mongolia, Qatar, Japan, South Africa, Germany, Afghanistan, Algeria, Estonia, Belgium, Canada, Czech Republic, Morocco, Tibet, Ecuador, Libya, Lahore, Norway, Taiwan, Croatia, United Kingdom, Angola, Sri Lanka, Egypt, New Zealand, Yemen, Macau, Trinidad & Tobago, Turkey, Lithuania, Lebanon, Greece, Venezuela, Bhutan, Chile, Bolivia, India, Gambia, Azerbaijan, Jordan, Slovakia, Kuwait, Netherlands, Algiera, Bahrain, Mexico, Puerto Rico, France, Australia, Singapore, Philippines, Malaysia, Bulgaria, Hong Kong, Namibia, Belarus, Ukraine, Poland, Pakistan, Vietnam, Nepal, Brazil, Portugal, Bangladesh, Switzerland, Ireland, Serbia, Costa Rica, Tunisia, Russia, Zimbabwe, Austria, Iran, Kazakhstan, columbia, South Korea, Romania, Israel, Nigeria, Oman, Iraq, Italy, Finland, Peru, Sweden, Gabon.

Domestic Supply Inconel 625 Flanges

Chandigarh, Nagpur, Faridabad, Chennai, Thane, Secunderabad, Ahmedabad, Bengaluru, Ludhiana, Indore, Jamshedpur, Nashik, Kolkata, Noida, Hyderabad, Visakhapatnam, Pune, Mumbai, Surat, Gurgaon, Jaipur, Rajkot, Ernakulam, Ranchi, Kanpur, New Delhi, Thiruvananthapuram, Haryana, Navi Mumbai, Pimpri-Chinchwad, Bhopal, Howrah.
