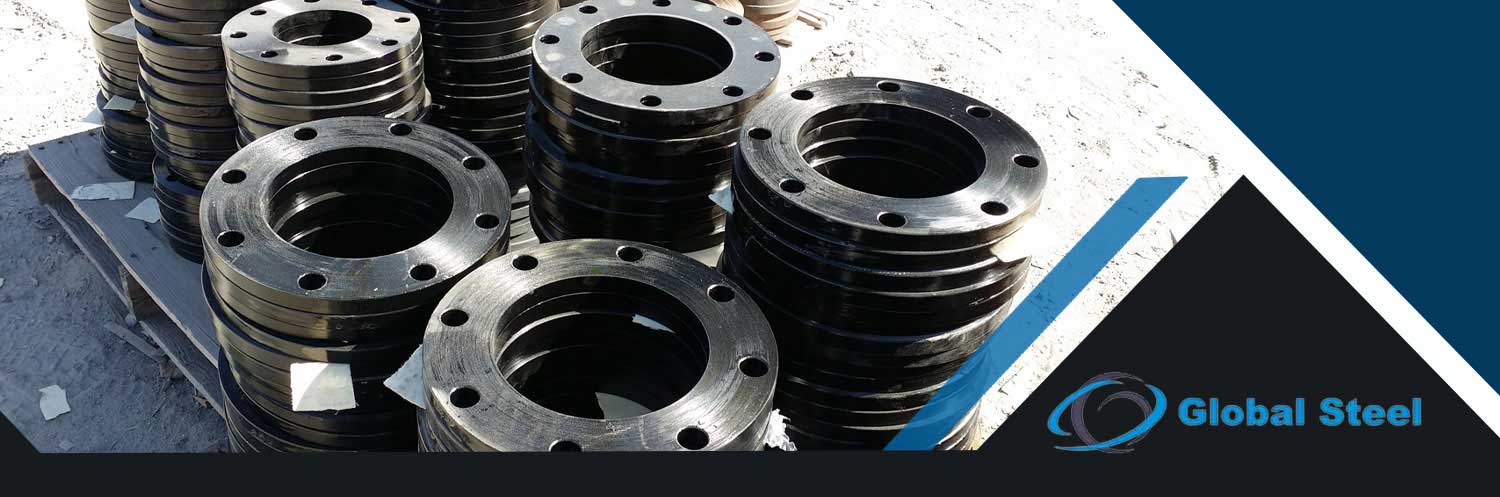

Carbon Steel A105 Flanges Manufacturer
Carbon Steel A105 is a popular material choice for manufacturing flanges due to its excellent properties & cost-effectiveness. Carbon steel flanges are widely used in piping systems for various applications in oil and gas, petrochemical, and other industries.
Carbon Steel A105 is a low-carbon steel alloy that contains small amounts of manganese, silicon, sulfur, & phosphorus. It has good weldability, high strength & flexibility. Carbon Steel A105 Flanges have good corrosion resistance & withstand high temperatures and pressures. These properties make it a preferred material for piping systems used in harsh environments.
Table Of content
- About Carbon Steel A105 Flanges
- Specification List of Carbon Steel A105 Flanges
- Manufacturing Standards of Carbon Steel A105 Flanges
- Different Types of Carbon Steel A105 Flanges
- Available Stock of Carbon Steel A105 Flanges
- Carbon Steel A105 Flanges Weight Chart
- Carbon Steel A105 Pipe Flange Dimensions
- Carbon Steel A105 Flanges Pressure Rating
- Chemical Structure of Carbon Steel A105 Flanges
- Mechanical Properties of Carbon Steel A105 Flanges
- We Serve Application Industry
- We Export Carbon Steel A105 Flanges Across the Globe
- Domestic Supply Carbon Steel A105 Flanges
Carbon Steel A105 Forged Flanges offer several benefits over other materials. It is cost-effective, readily available, and easy to machine. Because of its low carbon content, it exhibits good weldability and can be easily welded using different techniques. ASTM A105 Carbon Steel Flange can withstand high-pressure & high-temperature applications also making it an excellent choice for oil, gas & petrochemical industries. Its good corrosion resistance properties also prevent it from rusting or corroding, reducing maintenance costs.
Carbon Steel A105 flanges are used in various applications, including petrochemical, gas, and oil industries. They are also used in water distribution, heating, ventilation & air conditioning systems. A105 Carbon Steel Flanges are also used in the food and beverage industry, paper mills, and other manufacturing processes. It offers excellent resistance to pitting, stress & corrosion cracking in various environments, making it ideal for high-demand applications. We provide an extensive range of products, such as Inconel 617 Forged Fittings,Titanium Forged Fittings, and many others.
Carbon Steel A105 has numerous properties, making it an ideal material for flange manufacturing. Its low carbon content & alloying elements make it an efficient material for piping systems. It responds well to heat treatment, which enhances its strength & flexibility. A105 Carbon Steel Thread Flange also has excellent machining properties, making it easy to produce high-quality flanges. The high-quality carbon products we provide at Global Steel include Carbon Steel A36 Flanges, Carbon Steel IS2062 Flanges and more.
A105 Carbon Steel Blind Flange offer several benefits over other materials, including cost-effectiveness, weldability, excellent corrosion resistance & machinability. It has excellent properties that make it ideal for use in piping systems in harsh environments. The material is widely used in oil and gas, petrochemical, and other industries & has proven to be efficient for use in demanding applications.
What is a Carbon Steel A105 Flange?
A Carbon Steel A105 Flange is a type of flange made from ASTM A105 carbon steel. Flanges are mechanical components used to connect pipes, valves, pumps, and other equipment in piping systems. A105 is a commonly used material for flanges due to its good mechanical properties and compatibility with a variety of applications, including those involving high-temperature and high-pressure conditions.
What are the dimensions of Carbon Steel A105 Flanges available?
Carbon Steel A105 Flanges types have different designs to suit specific connection requirements. As for dimensions, A105 flanges conform to standard specifications such as ASME B16.5 and ASME B16.47, which outline the dimensions, pressure ratings, and other relevant details.
What are the temperature and pressure ratings of ASTM A105 flanges?
ASTM A105 flanges are designed to withstand a range of temperatures and pressures. The temperature and pressure ratings depend on factors such as the flange’s size, type, and class. Flanges are often categorized based on their pressure classes (e.g., 150, 300, 600, etc.), and the corresponding temperature and pressure ratings are provided in industry standards and reference tables.
Specification of Carbon Steel A105 Flanges
| Standards | ASTM A105 / ASME SA105 |
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Manufacturing Standards of Carbon Steel A105 Flanges
| ASME/ANSI B16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B16.36 | Orifice Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Different Types
Carbon Steel A105 Slip On Flanges
Carbon Steel A105 Blind Flanges
Carbon Steel A105 Socket Weld Flanges
Carbon Steel A105 Weld Neck Flanges
Carbon Steel A105 Reducing Flanges
Carbon Steel A105 Orifice Flanges
Contact us to get a quick quote for your requirement.
We offer These Carbon Steel A105 Flanges as per DIN, ASTM, ASME, BS, EN, JIS or ANSI Standard.
Available Stock
- A105M CS Male & Female Flanges
- ASME B16.47 Carbon Spades Ring Spacers Flanges
- ANSI B16.5 Carbon Steel Expander Flanges
- ASTM A105 Carbon Steel Nipoflange
- A105M CS Pipe Flange
- Carbon Steel A105 Plate Flange
- Type ASTM A105 Industrial Forged Flanges
- SA 105 Carbon Steel Flanges
- Carbon Steel A105M Lap Joint Flanges
- ASTM A182 FASTM A105 Carbon Steel Flanges
- Carbon Steel A105 Tongue Flanges
- Carbon Steel A105 PN 10 Flange
- Carbon Steel A105 Nipo Flanges
- Carbon Steel A105 BS Standard Table E
- SA 105 Carbon Steel 150 LBS Threaded Flanges
- Carbon Steel A105M Spectacle Blind Flanges
- ASTM A105 CS 1500 LBS Flanges
- ASME SA105 CS Lapped Joint Flanges
- Carbon Steel A105 Spades Ring Spacers Flanges
- Carbon Steel A105M British Standard Table D Pipe Flanges
- Austenitic Carbon Steel A105 Flanges
- Carbon Steel A105 Long Welding Neck Flange
- Carbon Steel A105 300 LBS Flanges
- Grade ASTM A105 Carbon Steel Flanges
Weight Chart
15mm (1/2″) Carbon Steel A105 Flanges Weight Chart
Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9 |
3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13 |
5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7 | 15.4 |
6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13 | 28.6 |
10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18 | 39.5 |
12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29 | 64 |
14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39 | 86 |
16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47 | 103 |
18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57 | 126 |
20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76 | 167 |
24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97 | 214 |
Dimensions
| AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
|---|
Pressure Rating
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Chemical Structure
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
Mechanical Properties
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We Serve Application Industry
Application Industry
ANSI / ASME 16.5, 16.48, 16.47 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
