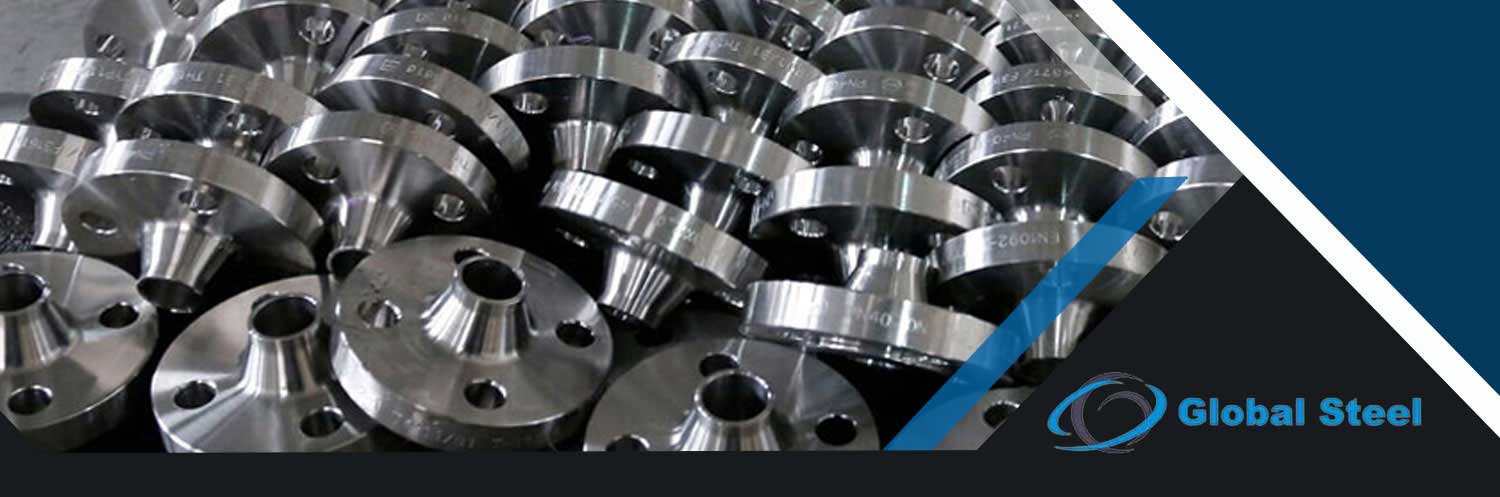

Titanium Grade 5 Flanges Manufacturer

Titanium Grade 5 Flanges are components manufactured from the alloy Ti-6Al-4V, known as Titanium Grade 5. Gr 5 Titanium Flanges are crucial in piping systems, effectively connecting pipes, valves & equipment. Its exceptional strength-to-weight ratio, corrosion resistance, and high-temperature endurance, Titanium Grade 5 is widely utilized in aerospace, chemical, and marine industries.

High Quality Grade 5 Titanium Flanges are pivotal in ensuring secure and reliable connections while benefiting from the alloy’s unique properties, making them ideal for applications that demand strength and resistance in challenging environments. Titanium Grade 5 Flanges exhibit remarkable properties attributed to the Ti-6Al-4V alloy. Its high strength-to-weight ratio, these flanges offer superior strength while remaining lightweight. They showcase excellent corrosion resistance, enabling prolonged use in aggressive environments.

These properties and biocompatibility make them versatile components utilized in aerospace, industrial, and medical applications where strength, corrosion resistance, and reliability are paramount. Titanium Gr 5 Flanges find widespread use across diverse industries due to their exceptional properties. In aerospace, they are used in aircraft components, benefiting from the alloy’s strength and lightweight nature.

Their corrosion resistance ensures reliability in corrosive environments in the chemical and petrochemical sectors. Medical applications capitalize on their biocompatibility for implants and surgical instruments. Ti Grade 5 Flanges have heat resistance which makes them valuable in high-temperature processes, cementing their role in various industrial contexts where durability and performance are essential. The high-quality titanium products we provide at Global Steel include Titanium Flanges, Titanium Grade 2 Flanges and more.

The benefits of Titanium 3.7165 Flanges stem from the alloy’s unique attributes. These flanges offer a remarkable strength-to-weight ratio, ensuring structural integrity without excessive weight. Their exceptional corrosion resistance safeguards against degradation in challenging environments, enhancing longevity.

Ti Gr.5 Flanges are reliable in elevated temperature applications. Biocompatibility expands their utility in medical devices, while their versatility favours aerospace, chemical, and industrial sectors, contributing to enhanced efficiency and durability in various applications. We provide an extensive range of products, such as Titanium Valves, Monel 400 Pipe Fittings and more.

What are the differences between Titanium Grade 5 Flanges and other titanium grades?

Titanium Grade 5 (Ti-6Al-4V) offers a balance of strength, corrosion resistance, and heat resistance. It is one of the most commonly used titanium alloys, offering a combination of properties suited to various applications.

How are Titanium Grade 5 Flanges used in aerospace applications?

Titanium Grade 5 Flanges are commonly used in aerospace due to their lightweight design, high strength, and resistance to extreme temperatures and corrosive environments.

What is the impact of titanium’s reactivity with oxygen on Titanium Grade 5 Flanges?

Titanium Grade 5 Flanges form a protective oxide layer when exposed to oxygen, enhancing their resistance to corrosion and improving their durability in various environments.

Specification of Titanium Grade 5 Flanges

Standards ASTM B381 / ASME SB381
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc
Size 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Titanium Grade 5 Flanges

Equivalent Grades

STANDARD WERKSTOFFNR. UNS
Titanium Gr.5 3.7165 R56400

Manufacturing Standards

ASME/ANSI B16.5 Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B16.47 Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B16.36 Orifice Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Different Types

Slip On Flanges

Titanium Grade 5 Slip On Flanges

Blind Flanges

Titanium Grade 5 Blind Flanges

Socket Weld Flanges

Titanium Grade 5 Socket Weld Flanges

Weld Neck Flange

Titanium Grade 5 Weld Neck Flanges

Reducing Flanges

Titanium Grade 5 Reducing Flanges

Orifice Flanges

Titanium Grade 5 Orifice Flanges

Contact us to get a quick quote for your requirement.

We offer These Titanium Grade 5 Flanges as per DIN, ASTM, ASME, BS, EN, JIS or ANSI Standard.

Available Stock

  • Grade 5 Titanium Pipe Flange
  • ANSI B16.5 Titanium Gr.5 Expander Flanges
  • Titanium Gr 5 PN 10 Flange
  • ASME B16.47 Titanium Grade 5 Spades Ring Spacers Flanges
  • Grade 5 Titanium Nipoflange
  • UNS R56400 Male & Female Flanges
  • ASTM B381 Grade 5 Titanium Flanges
  • Type Grade 5 Titanium Industrial Forged Flanges
  • Grade 5 Titanium Flanges
  • Titanium Gr5 Plate Flange
  • Titanium Grade 5 Tongue Flanges
  • Titanium UNS R56400 Lap Joint Flanges
  • Titanium Gr.5 Spectacle Blind Flanges
  • Titanium Grade 5 Spades Ring Spacers Flanges
  • Titanium Gr5 Long Welding Neck Flange
  • Titanium Gr 5 Lapped Joint Flanges
  • Grade 5 Titanium 150 LBS Threaded Flanges
  • Titanium Gr 5 BS Standard Table E
  • Titanium Gr.5 Nipo Flanges
  • Titanium Grade 5 Screwed Flanges
  • Titanium Gr. 5 British Standard Table D Pipe Flanges
  • Titanium 3.7165 1500 LBS Flanges
  • Ti Alloy Grade 5 Flanges
  • Titanium Grade 5 Flat Face Flanges
  • Titanium Grade 5 Loose Flanges
  • Grade 5 Titanium Flanges
  • Titanium 3.7165 Flanges

Weight Chart

15mm (1/2″) Titanium Grade 5 Flanges Weight Chart

Pipe Normal Diam.
O.D. Flange
Thk. Of Flange Min
Diam.
of
Hub
Diameter of Raised Face
Length Hub.Y
Thread Length
Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG
LB
inch
dn
O
C
X
G
Y
T
BC
BH
BN
BD


1/2″
15
89.00
11.20
30.20
35.10
15.70
15.70
60.50
15.80
4
1/2″
0.4
0.9
3/4″
20
98.50
12.70
38.10
42.90
15.70
15.70
69.90
15.80
4
1/2″
0.7
1.5
1″
25
108.00
14.20
49.30
50.80
17.50
17.50
79.30
15.80
4
1/2″
0.8
1.8
1-1/4″
32
117.50
15.70
58.70
63.50
20.60
20.60
88.90
15.80
4
1/2″
1.2
2.6
1-1/2″
40
127.00
17.50
65.00
73.20
22.40
22.40
98.60
15.80
4
1/2″
1.5
3.3
2″
50
152.50
19.10
77.70
91.90
25.40
25.40
120.70
19.10
4
5/8″
2.3
5.1
2-1/2″
65
178.00
22.40
90.40
104.60
28.40
28.40
139.70
19.10
4
5/8″
3.7
8.1
3″
80
190.50
23.90
108.00
127.00
30.20
30.20
152.40
19.10
4
5/8″
4.1
9
3-1/2″
90
216.00
23.90
122.20
139.70
31.80
31.80
177.80
19.10
8
5/8″
5.1
11.2
4″
100
228.50
23.90
134.90
157.20
33.30
33.30
190.50
19.10
8
5/8″
5.9
13
5″
125
254.00
23.90
163.60
185.70
36.60
36.60
215.90
22.40
8
3/4″
7
15.4
6″
150
279.50
25.40
192.00
215.90
39.60
39.60
241.30
22.40
8
3/4″
8.4
18.5
8″
200
343.00
28.40
246.10
269.70
44.50
44.50
298.50
22.40
8
3/4″
13
28.6
10″
250
406.50
30.20
304.80
323.90
49.30
49.30
362.00
25.40
12
7/8″
18
39.5
12″
300
482.50
31.80
365.30
381.00
55.60
55.60
431.80
25.40
12
7/8″
29
64
14″
350
533.50
35.10
400.10
412.80
57.20
57.20
476.30
28.50
12
1″
39
86
16″
400
597.00
36.60
457.20
469.90
63.50
63.50
539.80
28.50
16
1″
47
103
18″
450
635.00
39.60
505.00
533.40
68.30
68.30
577.90
31.80
16
1 1/8″
57
126
20″
500
698.50
42.90
558.80
584.20
73.20
73.20
635.00
31.80
20
1 1/8″
76
167
24″
600
813.00
47.80
663.40
692.20
82.60
82.60
749.30
35.10
20
1 1/4″
97
214

Dimensions

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
  • ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Pressure Rating

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Chemical Structure

Grade Ti Fe H N O Al V
Ti Grade 5 90 min 0.25max 0.2 max 6 min 4 min

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength(0.2%Offset) Elongation
Titanium Gr.5 4.43 g/cm3 1632°C (2970°F) Psi–138000, MPa–950 Psi–128000, MPa–880 14%

We Serve Application Industry

Application Industry

ANSI / ASME 16.5, 16.48, 16.47 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
