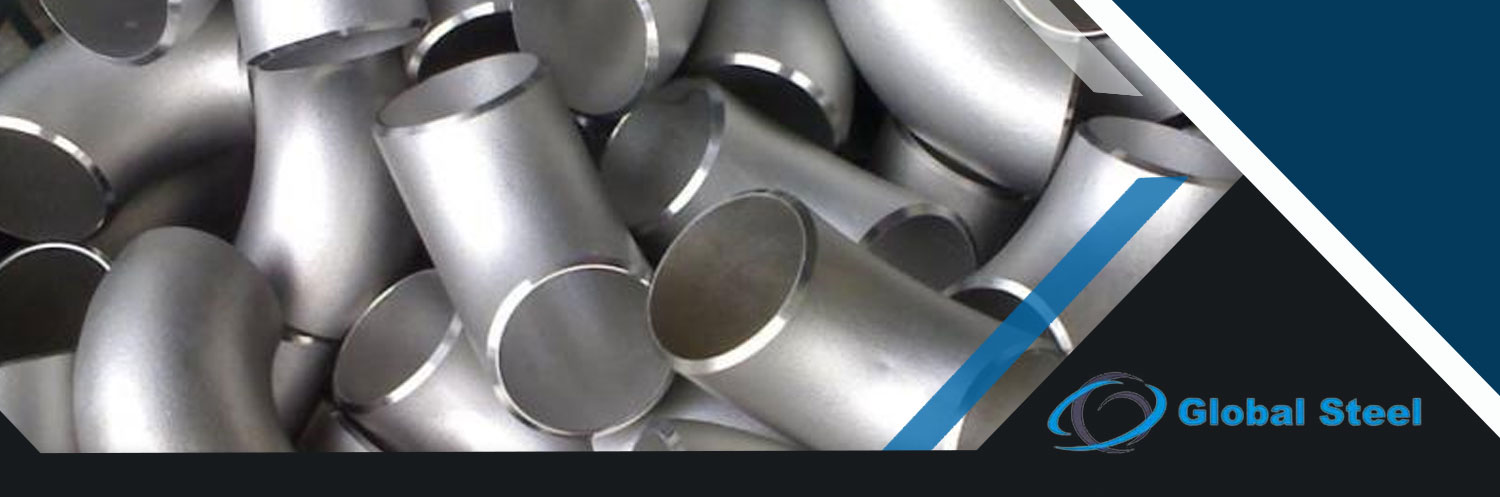

Super Duplex Steel S32760 Pipe Fittings Manufacturer

Global Steel is a leading manufacturer and supplier of super-tough, corrosion-resistant Super Duplex S32760 Pipe Fittings that are suitable for harsh environmental conditions. These fittings contain chromium, nickel, and molybdenum, which provide excellent resistance to crevice corrosion attack, and chloride pitting. Organic acids such as acetic and formic acid are highly resistant to uniform corrosion of these fittings.

Super Duplex 2507 Pipe Fittings offer outstanding corrosion and oxidation-resistant properties to withstand acidic environments, such as Flue Gas Scrubbing or Pulp & Paper Mill Equipment, piping, and heat exchangers, offer rust resistance property hence it withstands in oil and gas industry equipment, desalination equipment, and pipelines.

We Global Steel fabricates superior quality pipe fittings as per the preferences of our esteemed customers. We offer these pipe fittings in a variety of sizes, shapes, and specifications depending upon the requirements of each customer. Super Duplex S32760 pipe fittings have excellent characteristics such as superior finish, high tensile strength, perfectly immune to pitting, and high workability and durability.

In order to ensure that our Super Duplex S32760 Pipe Fittings are constructed using the highest quality raw materials, our professionals ensure that all parameters like hardness, annealing behavior, tempering behavior, quenching behavior, yield strength, and tensile strength have been carefully assessed.

We design Pipe fittings that offer these fundamental features, like strong weldability, robust construction, low maintenance, and long service lives. We offer a number of convenient shipping and packaging options to ensure safe and on-time deliveries of our products. Our experts use their skills to manufacture high-quality products without compromising their quality.

Specification of SDSS S32760 Pipe Fittings

Standards ASTM A815 / ASME SA815
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size
  • Seamless Butt Weld Fittings : 1/2″ – 10″
  • Welded Butt Weld Fittings : 1/2″ – 48″
Type Seamless / Welded / Fabricated
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Super Duplex S32760 Pipe Fittings

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Super Super Duplex S32760 1.4501 S32760

Manufacturing Standards

ASME B16.9 ASTM A815 S32760 Fittings Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28 Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
Mss SP75 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Different Types

Buttweld Elbow

SDSS S32760 Pipe Elbow

Butt weld Tee

SDSS S32760 Pipe Tee

Butt weld Cross

SDSS S32760 Pipe Cross

Reducers

SDSS S32760 Reducers

Buttweld Pipe Cap

SDSS S32760 Pipe Cap

Buttweld Stubends

SDSS S32760 Stub End

Contact us to get a quick quote for your requirement.

We offer These Super Duplex Steel S32760 Buttweld Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.

Available Stock

  • SDSS S32760 3D Elbow
  • ASTM A815 S32760 Super Duplex Steel Lateral Tee
  • Grade S32760 Super Duplex Steel Pipe Fittings
  • S32760 Super Duplex Steel Pipe Fittings
  • ASME B16.28 SDSS S32760 Two Joint Pipe Fittings
  • ANSI B16.9 Super Duplex Steel S32760 Pipe Caps
  • SDSS S32760 Reducers
  • Super Duplex Steel S32760 Pipe Reducing Tee
  • SAF 2507 Butt weld Elbow
  • Super Duplex Steel S32760 45° Short Radius Elbow
  • Super Duplex Steel S32760 Lap Joint Stub Ends
  • S32760 SDSS Two Halve Butt weld Fittings
  • S32760 Super Duplex Steel 1D Elbow
  • Type S32760 SDSS Industrial Buttweld Fittings
  • S32760 SDSS Pipe Fittings
  • UNS S32760 Super Duplex Steel 2D Elbow
  • UNS S32760 Buttweld Fittings
  • SDSS S32760 90° LR Elbow
  • Super Duplex Steel S32760 Butt weld Fittings
  • Super Duplex Steel S32760 Pipe Bends
  • Super Duplex Steel S32760 Buttweld Elbow
  • SDSS S32760 Pipe Fittings
  • SDSS S32760 Butt Weld Elbows 90°-SR- ASME B16.9
  • SDSS 1.4501 Two Joint Pipe Fittings
  • Super Duplex Steel S32760 45 Degree Pipe Elbow
  • ANSI B16.28 S32760 SDSS Seamless Pipe Fittings
  • S32760 Super Duplex Steel Pipe Fittings
  • Super Duplex Stainless Steel S32760 Reducing Elbow
  • SDSS S32760 ANSI/ ASME B16.9 1.5d Elbow
  • Super Duplex 2507 Eccentric Reducer
  • S32760 SDSS Stub End
  • Super Duplex Steel S32760 180° Buttweld Elbow
  • Super Duplex Steel S32760 Concentric Reducer
  • Super Duplex Steel S32760 Buttweld Pipe Nipple
  • SDSS S32760 Buttweld Pipe Fittings

Dimensional Tolerances

1/2 TO 2-1/2+1/16±1/32Not less than 87-1/2% of Normal Thickness±1/16±1/16±1/8±1/4±1/4±1/3212 to 41/321/16

-1/32






5 to 81/161/8
3 TO 3-1/2±1/16±1/16±1/16±1/16±1/8±1/4±1/4±1/3210 to 123/323/16
4±1/16±1/16±1/16±1/16±1/8±1/4±1/4±1/3214 to 163/321/4
5 TO 8+1/32±1/16±1/16±1/16±1/4±1/4±1/4±1/3218 to 241/83/8

-1/16









10 TO 18+1/16±1/8±3/32±3/32±1/4±3/8±1/4±1/16 All dimensions are in inches

-1/8






20 TO 24+1/4±3/32±3/32±3/32±1/4±3/8±1/4±1/16

-3/32






Chemical Structure

Grade C Mn Si P S Cr Mo Ni N Fe
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min

Mechanical Properties

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32760 7.8 0.281 1350 2460

We Serve Application Industry

Application Industry

Butt weld Pipe Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Petrochemical Industry

Power Generation Industry

Chemical Industry
