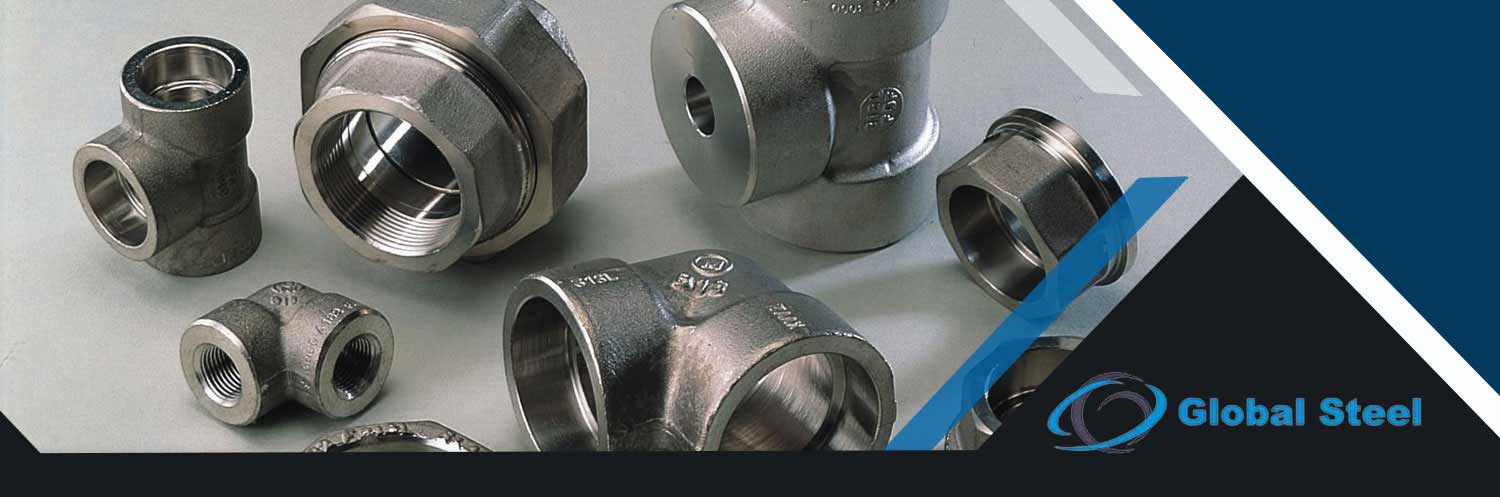

Global Steel is a well-known, Manufacturer, Supplier, and Stockist of Super Duplex S32760 Forged Fittings. These Super Duplex S32760 Forged fittings come up with a composition of 25 % chromium, 4 % molybdenum, and 7 % nickel. The high molybdenum, chromium, and nitrogen content help to provide excellent resistance to chloride pitting and crevice corrosion attack, as well as compliance with chloride stress corrosion and cracking. As a result of the ferritic content of this alloy, it is able to resist stress corrosion cracking in chloride-containing environments.
Table of Content
In the annealed state, the alloy fittings contain around 40 to 50 percent ferrite. The super duplex microstructure combines the strength of ferritic grades with the corrosion resistance of austenitic grades. It is not unusual to see the metal employed as a realistic remedy to the heel of stainless steel, chloride-induced stress cracking. It is also extremely resistant to sulfide-stress corrosion cracking in sour-gas conditions.
Super Duplex S32760 Forged Fittings should be used in applications below 600 Degree Fahrenheit as prolonged exposure to elevated temperatures can reduce hardness and corrosion resistance. SDSS S32760 fittings are used in many different industries such as heating, marine, chemical, pulp and paper manufacturing, water desalination, oil, and gas production. This duplex alloy steel material is created for its properties including high strength, corrosion resistance, and wear resistance.
On completion of the manufacturing of these Super Duplex S32760 Forged Fittings, these fittings are conveyed to the testing process, which is carried out by our expert staff. SDSS S32760 Forged Fittings are manufactured from premium quality raw materials obtained from the most reputed vendors, we test these raw materials extensively before fabrication, we conduct destructive and non-destructive tests on the products to check their attributes, third-party tests are performed at the request of our esteemed customers, and we maintain all standard packaging methods.
Standards | ASTM A182 / ASME SA182 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | Socketweld Fittings, Screwed-Threaded Fittings |
Forged Fittings Thread | NPT, BSPT, BSPP |
Forged Fittings Test Certificates |
|
Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
STANDARD | WERKSTOFF NR. | UNS |
Super Duplex S32760 | 1.4501 | S32760 |
ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
BS21 | Threading. |
BS3799 | Specification for Steel Forged fittings, screwed and Socket-welding for the petroleum industry |
ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Contact us to get a quick quote for your requirement.
We offer These Super Duplex Steel S32760 Socketweld Forged Fittings as per DIN, ISO, JIS or ANSI Standard.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
S32760 | 7.8 | 0.281 | 1350 | 2460 |
Application Industry
Socket weld Forged Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
