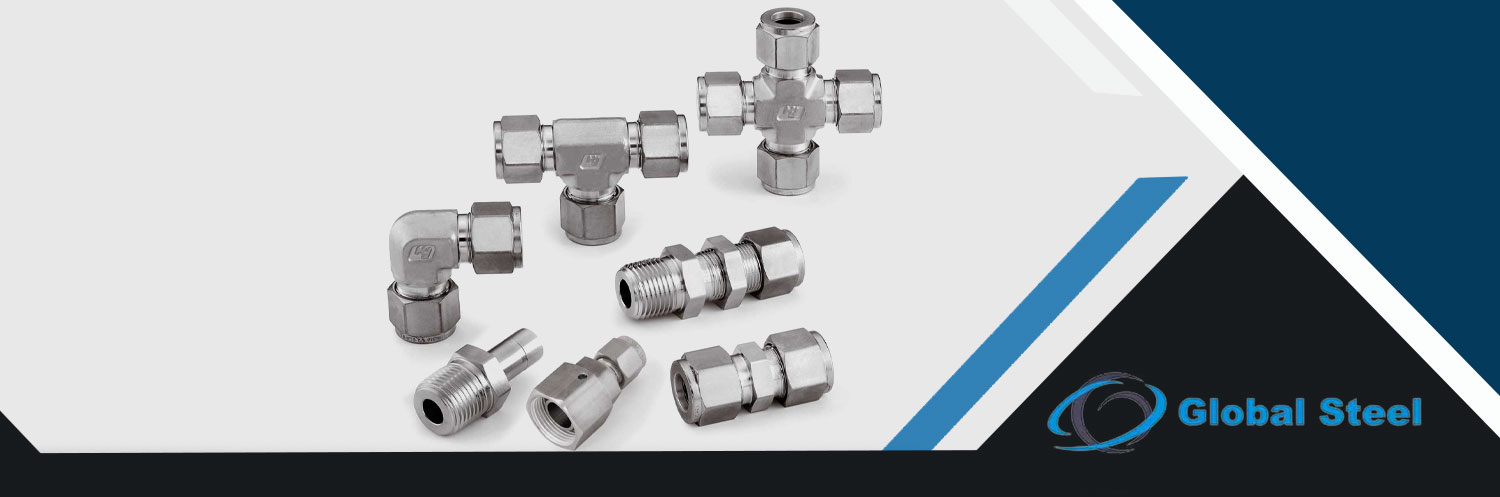

Stainless Steel 321 / 321H Instrumentation Fittings Manufacturer

Global steel is a well-known supplier and manufacturer of Stainless Steel 321/321H Instrumentation Fittings. We have a wide range of products such as Straight Stainless Steel 321/321H, Elbow Stainless Steel 321/321H, Tee Stainless Steel 321/321H, Cross Stainless Steel 321/321H, Bulk Head Stainless Steel 321/321H, etc. These instrumentation fittings can be customized according to the needs of the customer.

Table Of content

Stainless Steel 321 is an austenitic stainless steel which is stabilized with titanium. The titanium enhances the intergranular corrosion of the stainless steel 321 Instrumentation fittings. They are excellent for applications requiring high temperatures of up to 815 degrees Celsius. The addition of titanium also helps in the stabilization of the fittings against chromium carbide formation. Titanium carbide forms within the grain rather than at the grain boundaries because titanium has a greater affinity for carbon than chromium. While it has equal corrosion resistance as stainless steel 304/304L instrumentation fittings when annealed, it has better creep and stress rupture qualities, making it appropriate for pressure vessels and boilers. For sustained use at high temperatures, stainless steel 321 instrumentation fittings are nonmagnetic and heat resistant. Heat treatment will not harden stainless steel 321 instrumentation fittings; only cold working will. It can be welded using any regular process, and no post-weld annealing is necessary. This item is ductile and can be easily moulded. While stainless steel 321 instrumentation fittings have high corrosion resistance, especially against dilute organic acids, it is not appropriate for chloride solutions due to pitting and crevice corrosion.

Specification of SS 321, 321H Instrumentation Fittings

Imperial Size 1/2″ to 2″
Size 1/16”OD to 2”OD, 2mm OD to 50mm OD
Thread NPT, BSP, BSPT, UNF, ISO, SAE, MS, AN, weld ends etc.
Pressure Rating 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass
Temperature Ratings Up to 1000°F (537°C)
Types Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Application Power/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc.
Our service
  • Nace Mr 01 75
  • Sour Service
  • Impact Test As Per Ug 84
  • Macro Structure Analysis
  • Hydrogen Induce Cracking Test (Hic)
  • Sulphide Stress Cracking Test (Sscc)
  • Cryogenic Services (Cryo),hydrogen Services (H2)
  • Helieum Leak Test
  • Dye Peniterant Test (Dp)
  • Magnetic Partius Test (Mp)
  • Post Weld Heat Treatment (Pwht)
  • Ultrasonic Test (Ut)
  • Hydro Test, Etc.
Test Certificates
  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc
Production Technique Forged/ Heat treated and machined.
Stainless Steel 321 / 321H Instrumentation Fittings

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS EN
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9

Different Types

Instrumentation Union

SS 321, 321H Instrumentation Union

Instrumentation Elbow

SS 321, 321H Instrumentation Elbow

SS 304, 304L, 304H Pipe Clamp

SS 321, 321H Instrumentation Tee

Instrumentation Connector

SS 321, 321H Instrumentation Connector

Instrumentation Reducer

SS 321, 321H Instrumentation Reducer

Instrumentation Cross

SS 321, 321H Instrumentation Cross

Contact us to get a quick quote for your requirement.

We offer These Stainless Steel 321 / 321H Instrumentation Fittings as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Available Stock

  • 321H SS Instrumentation Fittings
  • 321 Stainless Steel Reducer Union-RU
  • SS 321H 45° Male Elbow – ME
  • Stainless Steel 321 Male Branch Tee-MBT
  • SS 321H Union Cross-UC
  • Stainless Steel 321 Nut
  • Stainless Steel 321H Female Branch Tee-FBT
  • UNS S32109 Instrumentation Fittings
  • UNS S32100 Stainless Steel Union-U
  • Grade 321 Stainless Steel Union Elbow-UE
  • Stainless Steel 321 Male Stud Coupling Connector
  • INOX 321 Instrumentation Fittings
  • 321 Stainless Steel Female Connector-FC
  • Stainless Steel 321 BSPP Plugs
  • SS 321H Instrument Female Run Tee-FRT
  • SS 321H Male Run Tee-MRT
  • 321 SS Gauge Adaptor
  • Stainless Steel 321 Coupling Reducer
  • SS 321H Bulk Head Union-BU
  • Type 321 SS Industrial Instrumentation Fittings
  • Stainless Steel 321 Female Elbow-FE
  • Stainless Steel 321H Instrumentation Fittings
  • Stainless Steel 321H Instrumentation Tube Fittings
  • Stainless Steel 321 Port Connector-PC
  • Stainless Steel 321 Bulk Head Male Connector
  • SS 321H Tube Socket Weld Elbow-TSWE
  • Stainless Steel 321H Back Ferrule-BF
  • Stainless Steel 321H Bulk Head Reducer BR
  • Stainless Steel 321 Coupling Socket
  • 321 Stainless Steel Male Pipe Weld Elbow-MPWE
  • SS 321H Female Connector
  • Stainless Steel 321H Adaptor
  • SS 1.4878 Tube Socket Weld Union-TSWU
  • Austenitic Stainless Steel 321H Female Run Tee
  • SS 321 Plug (Port Ends)-TP
  • Stainless Steel 321 Female Elbow
  • Stainless Steel 321 Male Plug
  • SS 321 Front Ferrule-FF
  • SS 1.4541 Compression Tube Fittings
  • Stainless Steel 321 Female Adapter-FA
  • SS 321 Male Run Tee
  • SS 321H Instrumentation Reducer-R
  • Stainless Steel 321 Hose Nipple BSP
  • 321 Stainless Steel Reducing Adaptor
  • 321H SS Male Branch Tee
  • SS 321H Instrumentation Tube Fittings
  • 321 Stainless Steel Hex Long Nipple
  • Stainless Steel 321H Male Pipe Weld Connector-MPWC

Dimensions

METRIC RANGE Dimension in mm
Part T P L1 M C D F G H N
N0 mmo/d   Length       Body Nut Body
4mMC2 4 1/8′ 31.35 9.53 16.67 14.29 12 12 24.21 10.72
4mMC4 4 1/4′ 35.72 14.29 16.67 14.29 14 12 29.37 15.88
6mMC2 6 1/8′ 33.34 9.53 18.26 15.88 14 14 25.40 11.11
6mMC4 6 1/4′ 33.34 14.29 18.26 15.88 14 14 30.16 12.70
6mMC6 6 3/8′ 38.89 14.29 18.26 15.88 19 14 30.96 13.49
6mMG8 6 1/2′ 44.45 19.05 18.26 15.88 22 14 36.51 15.88
8mMC2 8 1/8′ 34.53 9.53 19.05 16.67 14 17 26.59 11.51
8mM04 8 1/4′ 39.29 14.29 19.05 16.67 14 17 31.35 13.10
10mM02 10 1/8′ 35.72 9.53 19.84 17.46 17 19 27.78 11.91
10mMC4 10 1/4′ 40.48 14.29 19.84 17.46 17 19 32.54 13.49
10mMC6 10 3/8′ 40.48 14.29 19.84 17.46 19 19 32.54 13.49
10mMC8 10 1/2′ 46.04 19.05 19.84 17.46 22 19 38.10 15.88
10mMC12 10 3/4′ 46.83 19.05 19.84 17.46 27 19 38.89 15.08
12mMC4 12 1/4′ 43.66 14.29 22.23 23.02 22 22 33.34 11.11
12mMC6 12 3/8′ 43.66 14.29 22.23 23.02 22 22 33.34 11.11
12mMC8 12 1/2′ 48.42 19.05 22.23 23.02 22 22 38.10 12.70
12mM012 12 3/4′ 49.21 19.05 22.23 23.02 27 22 38.89 11.91
16mMC6 16 3/8′ 44.45 14.29 22.23 24.61 24 27 34.13 10.32
16mMC8 16 1/2′ 49.21 19.05 22.23 24.61 24 27 38.89 11.91
16mMC12 16 3/4′ 49.21 19.05 22.23 24.61 27 27 38.89 10.32
18mMC8 18 1/2′ 50.80 19.05 22.23 24.61 27 30 40.48 13.49
18mMC12 18 3/4′ 50.80 19.05 22.23 24.61 27 30 40.48 10.32
18mMC16 18 1″ 56.36 23.81 22.23 24.61 36 30 46.40 14.29
20mMC8 20 1/2′ 50.80 19.05 22.23 24.60 27 30 40.48 13.49
20mM012 20 3/4′ 50.80 19.05 22.23 24.61 27 30 40.48 10.32
20mM016 20 1″ 56.36 23.81 22.23 14.61 36 30 46.04 14.39
25mMC12 25 3/4′ 57.15 19.05 26.19 30.96 36 41 45.24 11.91
25mMC16 25 1″ 61.91 23.81 26.19 30.96 36 41 50.01 13.49
METRIC RANGE Dimention in Inches
Part T P L1 M C D F G H N
N0 mmo/d   Length       Body Nut Body
1MC1 1/16 1/16 .94 .38 .44 .34 5/16 5/16 .78 .34
1MC2 1/16 1/8 1.00 .38 .44 .34 1/2 5/16 .84 .41
2MC1 1/8 1/16 1.19 .38 .63 .53 1/2 7/16 .91 .41
2MC2 1/8 1/8 1.19 .38 .63 .53 1/2 7/16 .91 .41
2MC4 1/8 1/4 1.41 .56 .63 .53 9/16 7/16 1.13 .50
3MC2 3/16 1/8 1.21 .38 .63 .54 7/16 1/2 .95 .43
3MC4 3/16 1/4 1.42 .38 .63 .54 9.16 1/2 1.16 .54
4MC1 1/4 1/16 1.29 .56 .70 .60 1/2 9/16 1.00 .46
4MC2 1/4 1/8 1.29 .56 .70 .60 1/2 9/16 1.00 .45
4MC4 1/4 1/4 1.50 .75 .72 .63 9/16 9/16 1.19 .50
4MC6 1/4 3/8 1.51 .38 .70 .60 11/16 9/16 1.19 .56
4MC8 1/4 1/2 1.73 .56 .70 .60 7/8 9/16 1.44 .67
5MC2 5/16 1/8 1.34 .38 .73 .64 9/16 5/8 1.05 .46
5MC4 5/16 1/4 1.52 .56 .73 .64 9/16 5/8 1.23 .54
6MC2 3/8 1/8 1.38 .56 .76 .66 5/8 11/16 1.09 .48
6MC4 3/8 1/4 1.57 .75 .76 .66 5/8 11/16 1.28 .57
6MC6 3/B 3/8 1.57 .75 .76 .66 11/16 11/16 1.28 .56
6MC8 3/B 1/2 1.79 .56 .76 .66 7/8 11/16 1.50 .67
6MC12 3/8 3/4 1.82 .56 .76 .66 1-1/16 11/16 1.53 .68
8MC4 1/2 1/4 1.17 .75 .86 .90 13/16 7/8 1.31 .47
8MC6 1/2 3/8 1.71 .75 .86 .90 13/16 7/8 1.31 .46
8MC8 1/2 1/2 1.90 .56 .86 .90 7/8 7/8 1.50 .54
8MC12 1/2 3/4 1.93 .75 .86 .90 1-1/16 7/8 1.53 .55
10MC6 5/8 3/8 1.74 .56 .86 .96 15/16 1 1.34 .43
10MC8 5/8 1/2 1.93 .75 .86 .96 15/16 1 1.53 .51
10MC12 5/B 3/4 1.93 .75 .86 .96 1-1/16 1 1.53 .49
12MC8 3/4 1/2 1.99 .75 .86 .96 1-1/16 1-1/8 1.59 .57
12MC12 3/4 3/4 1.99 .75 .86 .96 1-1/16 1-1/18 1.59 .55
12MC16 3/4 1 2.21 .94 .86 .96 1-3/16 1-1/8 1.81 .68
16MC12 1 3/4 2.26 .75 1.04 1.23 1-3/8 1-1/2 1.78 .55
16MC16 1 1 2.45 .94 1.04 1.23 1-3/8 1-1/2 1.97 .65

Chemical Structure

Grade C Mn Si P S Cr N Ni Ti
SS 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 5(C+N) – 0.70 max
SS 321H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 4(C+N) – 0.70 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

We Serve Application Industry

Application Industry

Instrumentation Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
