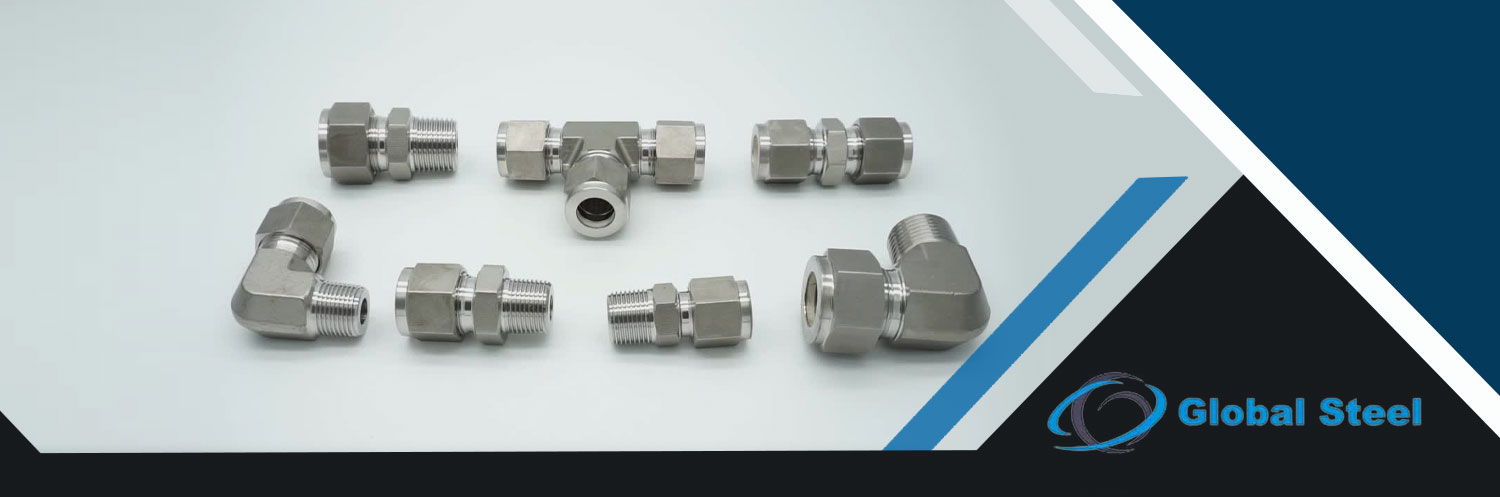

SMO 254 Instrumentation Fittings Manufacturer

Global Steel is a leading manufacturer and supplier of SMO 254 Instrumentation Fittings. We are one of the most reputed and trusted stockholders of Stainless steel fasteners, we supply our products at a competitive price range due to our vast experience and knowledge in this industry. We are trusted by international and domestic clients to provide top quality SMO 254 Instrumentation Fittings.

Table Of content

SMO 254 Instrumentation Fittings have molybdenum and nitrogen added in their composition. SMO 254 Instrumentation Fittings have enhanced corrosion resistance due to the addition of these elements. SMO 254 Instrumentation Fittings can also withstand pitting and stress corrosion cracking in harsh environments. This is because of the added chromium and molybdenum. The strength of SMO 254 Instrumentation Fittings is almost double that of other stainless steel 300-grade instrumentation fittings. Due to the high amounts of nitrogen, molybdenum and chromium in their alloy, SMO 254 Instrumentation Fittings are usually used in environments rich in chloride. SMO 254 Instrumentation fittings are more resistant to pure sulphuric acid than ASTM TP316. SMO 254 Instrumentation Fittings outperforms Stainless Steel 904L Instrumentation Fittings in naturally aerated sulphuric acid including chloride ions. They are used in a wide variety of applications such as Equipment for the handling of seawater, such as seawater cooling, cooling water pipes, ballast water systems, firefighting systems, Hydraulic and instrumentation tubing, Equipment in pulp bleaching plants, Components in gas cleaning systems, Tanks and pipelines for chemicals with high halide contents, etc.

Specification of SMO 254 Instrumentation Fittings

Imperial Size 1/2″ to 2″
Size 1/16”OD to 2”OD, 2mm OD to 50mm OD
Thread NPT, BSP, BSPT, UNF, ISO, SAE, MS, AN, weld ends etc.
Pressure Rating 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass
Temperature Ratings Up to 1000°F (537°C)
Types Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Application Power/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc.
Our service
  • Nace Mr 01 75
  • Sour Service
  • Impact Test As Per Ug 84
  • Macro Structure Analysis
  • Hydrogen Induce Cracking Test (Hic)
  • Sulphide Stress Cracking Test (Sscc)
  • Cryogenic Services (Cryo),hydrogen Services (H2)
  • Helieum Leak Test
  • Dye Peniterant Test (Dp)
  • Magnetic Partius Test (Mp)
  • Post Weld Heat Treatment (Pwht)
  • Ultrasonic Test (Ut)
  • Hydro Test, Etc.
Test Certificates
  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc
Production Technique Forged/ Heat treated and machined.
SMO 254 Instrumentation Fittings

Equivalent Grades

STANDARD UNS WERKSTOFF NR. EN AFNOR SIS
SMO 254 S31254 1.4547 X1CrNiMoCuN20-18-7 Z1 CNDU 20.18.06Az 2378

Different Types

Instrumentation Union

SMO 254 Instrumentation Union

Instrumentation Elbow

SMO 254 Instrumentation Elbow

SS 304, 304L, 304H Pipe Clamp

SMO 254 Instrumentation Tee

Instrumentation Connector

SMO 254 Instrumentation Connector

Instrumentation Reducer

SMO 254 Instrumentation Reducer

Instrumentation Cross

SMO 254 Instrumentation Cross

Contact us to get a quick quote for your requirement.

We offer These SMO 254 Instrumentation Fittings as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Available Stock

  • SMO 254 Instrumentation Fittings
  • SMO 1.4547 Male Elbow – ME
  • 254 SMO Reducer Union-RU
  • Alloy 254 45° Male Elbow – ME
  • SMO 254 Nut
  • SMO 254 Male Branch Tee-MBT
  • UNS S31254 Instrumentation Fittings
  • UNS S31254 SMO Union-U
  • Grade 254 SMO Union Elbow-UE
  • SMO 254 BSPP Plugs
  • SS SMO 254 Male Run Tee-MRT
  • Type 254 Stainless Steel Industrial Instrumentation Fittings
  • SMO 254 Female Branch Tee-FBT
  • 254 SMO Female Connector-FC
  • SMO 254 Coupling Reducer
  • SMO 254 Female Elbow-FE
  • SMO 254 Bulk Head Male Connector
  • 6Mo Stainless Steel Instrumentation Fittings
  • SMO 254 Female Adapter-FA
  • SS SMO 254 Tube Socket Weld Elbow-TSWE
  • Stainless Steel 254 Female Connector
  • SMO 254 Port Connector-PC
  • SMO 254 Male Pipe Weld Connector-MPWC
  • SMO 254 Male Plug
  • SMO 254 Back Ferrule-BF
  • SMO 1.4547 Compression Tube Fittings
  • SMO 254 Female Run Tee
  • SMO 254 Bulk Head Reducer BR
  • SMO 254 Hose Nipple BSP
  • Alloy 6Moly Front Ferrule-FF
  • SMO 254 Adaptor
  • 254 Stainless Steel Male Branch Tee
  • Alloy 6Moly Gauge Adaptor

Dimensions

METRIC RANGE Dimension in mm
Part T P L1 M C D F G H N
N0 mmo/d   Length       Body Nut Body
4mMC2 4 1/8′ 31.35 9.53 16.67 14.29 12 12 24.21 10.72
4mMC4 4 1/4′ 35.72 14.29 16.67 14.29 14 12 29.37 15.88
6mMC2 6 1/8′ 33.34 9.53 18.26 15.88 14 14 25.40 11.11
6mMC4 6 1/4′ 33.34 14.29 18.26 15.88 14 14 30.16 12.70
6mMC6 6 3/8′ 38.89 14.29 18.26 15.88 19 14 30.96 13.49
6mMG8 6 1/2′ 44.45 19.05 18.26 15.88 22 14 36.51 15.88
8mMC2 8 1/8′ 34.53 9.53 19.05 16.67 14 17 26.59 11.51
8mM04 8 1/4′ 39.29 14.29 19.05 16.67 14 17 31.35 13.10
10mM02 10 1/8′ 35.72 9.53 19.84 17.46 17 19 27.78 11.91
10mMC4 10 1/4′ 40.48 14.29 19.84 17.46 17 19 32.54 13.49
10mMC6 10 3/8′ 40.48 14.29 19.84 17.46 19 19 32.54 13.49
10mMC8 10 1/2′ 46.04 19.05 19.84 17.46 22 19 38.10 15.88
10mMC12 10 3/4′ 46.83 19.05 19.84 17.46 27 19 38.89 15.08
12mMC4 12 1/4′ 43.66 14.29 22.23 23.02 22 22 33.34 11.11
12mMC6 12 3/8′ 43.66 14.29 22.23 23.02 22 22 33.34 11.11
12mMC8 12 1/2′ 48.42 19.05 22.23 23.02 22 22 38.10 12.70
12mM012 12 3/4′ 49.21 19.05 22.23 23.02 27 22 38.89 11.91
16mMC6 16 3/8′ 44.45 14.29 22.23 24.61 24 27 34.13 10.32
16mMC8 16 1/2′ 49.21 19.05 22.23 24.61 24 27 38.89 11.91
16mMC12 16 3/4′ 49.21 19.05 22.23 24.61 27 27 38.89 10.32
18mMC8 18 1/2′ 50.80 19.05 22.23 24.61 27 30 40.48 13.49
18mMC12 18 3/4′ 50.80 19.05 22.23 24.61 27 30 40.48 10.32
18mMC16 18 1″ 56.36 23.81 22.23 24.61 36 30 46.40 14.29
20mMC8 20 1/2′ 50.80 19.05 22.23 24.60 27 30 40.48 13.49
20mM012 20 3/4′ 50.80 19.05 22.23 24.61 27 30 40.48 10.32
20mM016 20 1″ 56.36 23.81 22.23 14.61 36 30 46.04 14.39
25mMC12 25 3/4′ 57.15 19.05 26.19 30.96 36 41 45.24 11.91
25mMC16 25 1″ 61.91 23.81 26.19 30.96 36 41 50.01 13.49
METRIC RANGE Dimention in Inches
Part T P L1 M C D F G H N
N0 mmo/d   Length       Body Nut Body
1MC1 1/16 1/16 .94 .38 .44 .34 5/16 5/16 .78 .34
1MC2 1/16 1/8 1.00 .38 .44 .34 1/2 5/16 .84 .41
2MC1 1/8 1/16 1.19 .38 .63 .53 1/2 7/16 .91 .41
2MC2 1/8 1/8 1.19 .38 .63 .53 1/2 7/16 .91 .41
2MC4 1/8 1/4 1.41 .56 .63 .53 9/16 7/16 1.13 .50
3MC2 3/16 1/8 1.21 .38 .63 .54 7/16 1/2 .95 .43
3MC4 3/16 1/4 1.42 .38 .63 .54 9.16 1/2 1.16 .54
4MC1 1/4 1/16 1.29 .56 .70 .60 1/2 9/16 1.00 .46
4MC2 1/4 1/8 1.29 .56 .70 .60 1/2 9/16 1.00 .45
4MC4 1/4 1/4 1.50 .75 .72 .63 9/16 9/16 1.19 .50
4MC6 1/4 3/8 1.51 .38 .70 .60 11/16 9/16 1.19 .56
4MC8 1/4 1/2 1.73 .56 .70 .60 7/8 9/16 1.44 .67
5MC2 5/16 1/8 1.34 .38 .73 .64 9/16 5/8 1.05 .46
5MC4 5/16 1/4 1.52 .56 .73 .64 9/16 5/8 1.23 .54
6MC2 3/8 1/8 1.38 .56 .76 .66 5/8 11/16 1.09 .48
6MC4 3/8 1/4 1.57 .75 .76 .66 5/8 11/16 1.28 .57
6MC6 3/B 3/8 1.57 .75 .76 .66 11/16 11/16 1.28 .56
6MC8 3/B 1/2 1.79 .56 .76 .66 7/8 11/16 1.50 .67
6MC12 3/8 3/4 1.82 .56 .76 .66 1-1/16 11/16 1.53 .68
8MC4 1/2 1/4 1.17 .75 .86 .90 13/16 7/8 1.31 .47
8MC6 1/2 3/8 1.71 .75 .86 .90 13/16 7/8 1.31 .46
8MC8 1/2 1/2 1.90 .56 .86 .90 7/8 7/8 1.50 .54
8MC12 1/2 3/4 1.93 .75 .86 .90 1-1/16 7/8 1.53 .55
10MC6 5/8 3/8 1.74 .56 .86 .96 15/16 1 1.34 .43
10MC8 5/8 1/2 1.93 .75 .86 .96 15/16 1 1.53 .51
10MC12 5/B 3/4 1.93 .75 .86 .96 1-1/16 1 1.53 .49
12MC8 3/4 1/2 1.99 .75 .86 .96 1-1/16 1-1/8 1.59 .57
12MC12 3/4 3/4 1.99 .75 .86 .96 1-1/16 1-1/18 1.59 .55
12MC16 3/4 1 2.21 .94 .86 .96 1-3/16 1-1/8 1.81 .68
16MC12 1 3/4 2.26 .75 1.04 1.23 1-3/8 1-1/2 1.78 .55
16MC16 1 1 2.45 .94 1.04 1.23 1-3/8 1-1/2 1.97 .65

Chemical Structure

Grade C Mn Si S Cu Ni Cr P Mo
SMO 254 0.02 max 1 max 0.8 max 0.01 max 0.5 – 1 17.5 – 18.5 19.5 – 20.5 0.03 1 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1320-1390 °C MPa -650 MPa – 300 35 %
