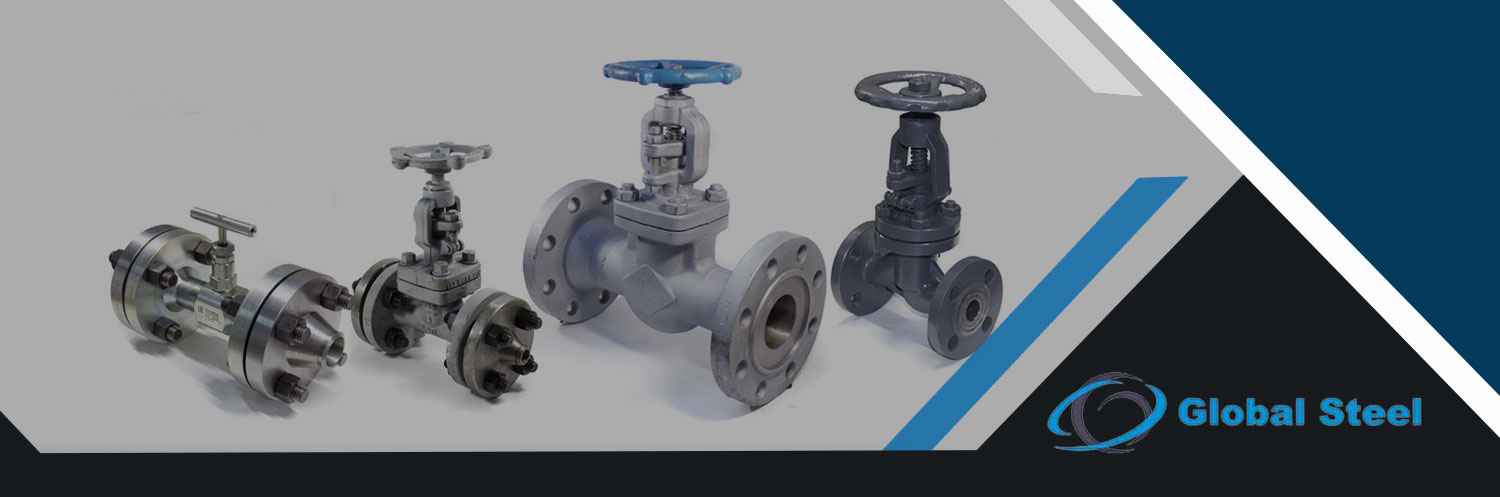

Titanium Grade 7 Valves Manufacturer

Titanium is a metal that benefits various industries, particularly in the oil & gas sector. One of the most popular alloys of titanium is Grade 7. It contains both titanium & palladium making it an excellent high-strength metal. One of the most common uses for Grade 7 titanium is in producing valves.

Titanium Grade 7 Valves is a highly durable & corrosion-resistant titanium alloy containing small amounts of palladium, enhancing its mechanical properties. It is used to make items that require excellent formability, such as tubes, pipes, valves & fasteners. Its strength and wear resistance abilities make it an excellent material for applications in harsh environments.

Table Of content

Valves from Titanium Alloy R52400 High Pressure Valves offer several benefits, including high corrosion resistance, lightweight, & excellent mechanical properties. Although titanium is more expensive than materials like steel, its corrosion resistance means it has a longer lifespan & requires lower maintenance costs, making it a cost-effective option.

Ti 3.7235 Needle Valves are widely used in various industries, including oil and gas, chemical processing, aerospace, and marine industries. Due to their non-reactive nature and high corrosion resistance, they can be used in harsh environments where exposure to corrosive fluids and gases is common. UNS R52400 Valves are also used in high-temperature environments like petrochemical & nuclear power plants because of their excellent thermal conductivity. We provide an extensive range of products, such as Carbon steel A105 Forged Fittings, Duplex Steel S32205 Pipe Fittings and more.

Titanium 3.7235 Valves are known for their impressive material properties. They have high strength, high corrosion resistance, excellent formability, and weldability, making them easy to machine. They resist crevice and pitting corrosion, fatigue & erosion, allowing them to operate even in extreme environments. Titanium Gr. 7 Ball Valves have good thermal stability and resistance to high temperatures. The high-quality titanium products we provide at Global Steel include Titanium Grade 5 Valves, Titanium Grade 2 Valves and more.

Ti Grade 7 Pressure Relife Valve are an excellent investment for industries that require long-lasting, reliable, and efficient valves. Their exceptional properties make them an ideal choice in harsh environments, especially where exposure to corrosive fluids, gases & high temperatures is prevalent. The benefits of using Ti Alloy Grade 7 Valves include longevity, cost-effectiveness, and high performance, making it worth the investment. Industries such as the oil and gas industry and chemical processing rely on these valves to maintain safe and efficient operations, making them essential components in many production processes.

How do I operate a grade 7 titanium valve?

Operating a grade 7 titanium valve can initially feel daunting, but it’s a relatively straightforward process with the proper knowledge and instruction. Start by checking all clamps and screws that connect the valve to ensure they’re tight but not too tight. Once you are comfortable that everything is secure enough to open the valve, ensure there are no hazardous gases or liquids in the surrounding area for safety reasons. When you’re ready, slowly unscrew the handle until it is entirely vertical, then securely loosen any additional valves if necessary. Finally, test the valve to ensure no leaks before shutting it down again to wrap up the process!

What is the maximum flow rate for a grade 7 titanium valve?

The maximum flow rate for a grade 7 titanium valve depends on various factors such as valve size, pressure, and fluid viscosity. However, grade 7 titanium is known for its high strength-to-weight ratio, excellent corrosion resistance, and bio compatibility, making it a popular choice for valves in demanding applications. Titanium valves also provide excellent heat resistance, making them suitable for high-temperature environments. In general, grade 7 titanium valves can handle high flow rates. They can operate at pressures up to 3000 psi, making them suitable for use in various industries, including aerospace, marine, and medical.

How much does a grade 7 titanium valve weigh?

Weight is essential when purchasing titanium valves, and grade 7 titanium valves are no exception. Grade 7 titanium valves typically weigh 3.2 to 8.1 ounces, with a median weight of 5.6 ounces. This provides the strength and lightweight properties that make grade 7 titanium an appealing option for various industries. In particular, grade 7 titanium valves have proven useful in marine, orthopaedic, aerospace and chemical industries due to their ability to endure extreme temperatures and other environmental conditions without becoming corroded or degraded. Ultimately, choosing the right type of valve is essential for optimal performance in any industry application – something that should be heavily considered when selecting a grade 7 titanium valve for your next project.

Specification of Titanium Grade 7 Valves

Standards API 598 / BS EN 12266-1, ASME B 16.10, Sizes available on request API 600/BS1414, 1/8 to 1”, ASME B 16.34, ASME B 16.5, ASME B16.25
Sizes Sizes available on Request, 1/8 to 1”, 1/2′ TO 14”
Working Pressure Valves are also available which could handle higher pressure, Up to 6000 PSIG
End Connection BSPT, Male and Female NPT, Male to Female, Socket Weld (SW) or Dual Ferrule Tube Connections, Female to Female
Temperature Ratings (232C)/Grafoil 700 F(371C), PTFE 450F
Pressure Rating 150#, 300#, 600#, 800#, 1500#
Application Power/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc.
Ends Flange Ends, Screwed Ends,Socket Weld Ends
Type Ball Valves, Globe Valves, Check Valves, Needle Valves, Butterfly Valves
Temperature Rating (232C)/Grafoil 700 F(371C),PTFE 450F
Titanium Grade 7 Valves

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Titanium Gr 7 3.7235 R52400

Different Types

SS Manifold Valves

Titanium Grade 7 Manifold Valves

SS Monoflange Manifold Valves

Titanium Grade 7 Monoflange Manifold Valves

SS Double Block Bleed Valves

Titanium Grade 7 Double Block & Bleed Valves

SS Needle Valves

Titanium Grade 7 Needle Valves

SS Ball Valves

Titanium Grade 7 Ball Valves

Check Valve

Titanium Grade 7 Check Valves (nrv) & Piston

Contact us to get a quick quote for your requirement.

We offer These Titanium Grade 7 Valves as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Available Stock

  • Titanium Grade 7 Monoflange Valves
  • Titanium Grade 7 Panel Mounted Ball Valve
  • Grade 7 Titanium Forged Steel Valves
  • Titanium Alloy Grade 7 Instrumentation Needle Valve
  • Titanium Gr. 7 Block Bleed Valve
  • Titanium Grade 7 Mini Needle Valve
  • Ti Alloy Grade 7 Forged Integral Bonnet Angle Type Needle Valves
  • Titanium 3.7235 Panel Mounted Needle Valve
  • UNS R52400 Threaded Butterfly Valves
  • Titanium Alloy 3.7235 High Pressure Ball Valves
  • Titanium Alloy Gr. 7 Manifold Check Valve
  • Ti Grade 7 Pannel Mounting Ball Valve
  • Titanium Grade 7 Industrial Valves
  • Ti R52400 Instrumentation Check Valve
  • Titanium Grade 7 Instrumentation Non Return Valve
  • Titanium R52400 4 Way Ball Valves
  • Grade 7 Titanium Forged-Body Needle Valves
  • Titanium Gr 7 Hydraulic Ball Valve
  • Titanium Gr 7 NRV Check Valve
  • Titanium Grade 7 Instrumentation Ball Valves
  • Titanium Grade 7 Ball Valve Threaded
  • Titanium Grade 7 Pressure Reducing Valve
  • Gr 7 Titanium Alloy 3-way Flange Ball Valves
  • Titanium Alloy Grade 7 Bleed and Purge Valves
  • Titanium 3.7235 High Pressure Ball Valve
  • Titanium R52400 3 PCS Ball Valve
  • Titanium Gr. 7 High Pressure Needle Valve
  • Titanium Gr 7 Double Block & Bleed Valves
  • Titanium Grade 7 2 Way Ball Valves
  • Titanium Grade 7 Monoflange Manifold Valves
  • Titanium Alloy Grade 7 Manifold Check Valve
  • Titanium Alloy 3.7235 Female X Female Check Valve
  • Grade 7 Titanium Valves

Pressure Rating

Pressure & Temperature Limit accordance to ANSI/ ASME B16.34 material

Temp. °F 150 300 400 600 900 1500 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 [1] 310 410 615 925 1545 2570
1100 20 [1] 255 345 515 770 1285 2145
1150 20 [1] 200 265 400 595 995 1655
1200 20 [1] 155 205 310 465 770 1285
1250 20 [1] 115 150 225 340 565 945
1300 20 [1] 85 115 170 255 430 715
1350 20 [1] 60 80 125 185 310 515
1400 20 [1] 50 65 95 145 240 400
1450 15 [1] 35 45 70 105 170 285
1500 10 [1] 25 35 55 80 135 230

Dimension Standards

Size L a b W H
1/8″ 56 28 28 60 80
¼” 56 28 28 60 80
3/8” 56 28 28 60 80
½” 58 28 28 60 81
¾” 62 35 35 60 85
1” 70 45 45 70 100
Port Size (BSP) Media Pressure Media Temperature CV
1/8″ 0 to 408 Bar -20°C to 230°C
¼” 0 to 408 Bar -20°C to 230°C 0.4
3/8” 0 to 408 Bar -20°C to 230°C 0.4
½” 0 to 408 Bar -20°C to 230°C 0.6
¾” 0 to 408 Bar -20°C to 230°C 1.6
1” 0 to 408 Bar -20°C to 230°C 2.5

Chemical Structure

Grade Fe O C N H Pd Ti
Titanium Gr. 7 0.30 max 0.25 max 0.08 max 0.03 max 0.0150 max 0.20 max Balance

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %

We Serve Application Industry

Application Industry
Valves applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Petrochemical Industry

Power Generation Industry

Chemical Industry

Materials
